(21.133.AK[01]) - VAR - 391136, 758011, 758012, 758013, 758014, 758015 - TRANSMISSION CONTROL VALVE, SEMI-POWERSHIFT

Запчасти Case IH PUMA 165 (21.133.AK[01]) - VAR - 391136, 758011, 758012, 758013, 758014, 758015 - TRANSMISSION CONTROL VALVE, SEMI-POWERSHIFT (21) - TRANSMISSION

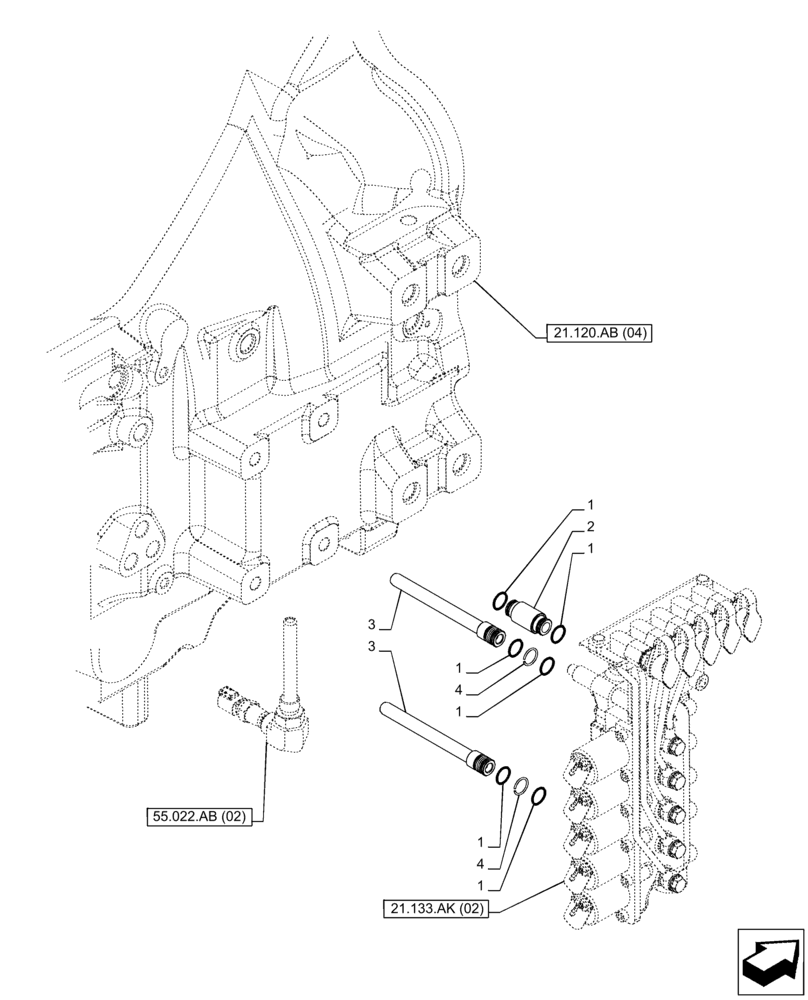

Схема запчастей Case IH PUMA 165 - (21.133.AK[01]) - VAR - 391136, 758011, 758012, 758013, 758014, 758015 - TRANSMISSION CONTROL VALVE, SEMI-POWERSHIFT (21) - TRANSMISSION
21.133.ak (02)
1
55.022.ab (02)
2
1
3
1
21.120.ab (04)
1
4
1
3
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

10шт.

2

5167065

HYD CONNECTOR,10mm ID, 44.5mm L

44.5mm

1шт.

3

5162184

HYD CONNECTOR,M10 x 1.25, 136mm L

136mm

4шт.

4

13397770

SNAP RING,M16, Int

4шт.

Выбрано товаров: 4
