Запчасти Case IH PUMA 165 (10.254.AD[02]) - VAR - 391209, 758197, 758198 - EXHAUST SYSTEM PIPE, COVERS (10) - ENGINE

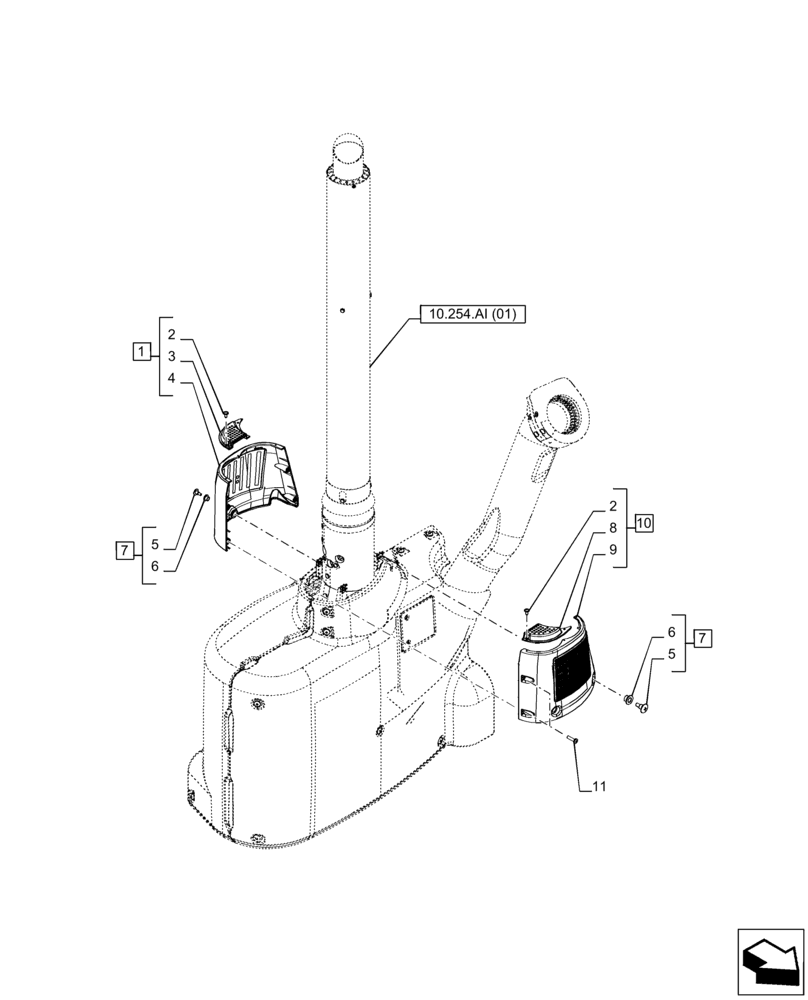

Схема запчастей Case IH PUMA 165 - (10.254.AD[02]) - VAR - 391209, 758197, 758198 - EXHAUST SYSTEM PIPE, COVERS (10) - ENGINE
4
7
6
6
10.254.ai (01)
8
2
10
5
2
5
11
3
1
7
9

Артикул

Название

Примечание

Количество

1

47613906

COVER

Rear, ASSY, Incl 2 - 4

1шт.

2

16089877

SCREW,Spcl Tap, Pan Hd Phil, M4.50mm x 2.5 x 12mm

4шт.

3

NSS

NOT SOLD SEPARAT

Cover, Post, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Trim, Terminal Upper Cover Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Screw, M6 x 20, Incl in 7

1шт.

6

NSS

NOT SOLD SEPARAT

Bushing, Thermal Insulator, Incl in 7

1шт.

7

84348915

SCREW,Pan Hd Phil, M6 x 20mm, w/Thermal Insulator

ASSY, Incl 5, 6

2шт.

8

NSS

NOT SOLD SEPARAT

Trim, Terminal Upper Cover, Incl in 10

1шт.

9

NSS

NOT SOLD SEPARAT

Cover, Front, Incl in 10

1шт.

10

47613908

COVER

Front, ASSY, Incl 2, 8, 9

1шт.

11

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

4шт.

Выбрано товаров: 11
