Запчасти Case IH PUMA 165 (90.116.AC[11]) - VAR - 758182, 758340 - WIDE REAR FENDERS, EXTENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

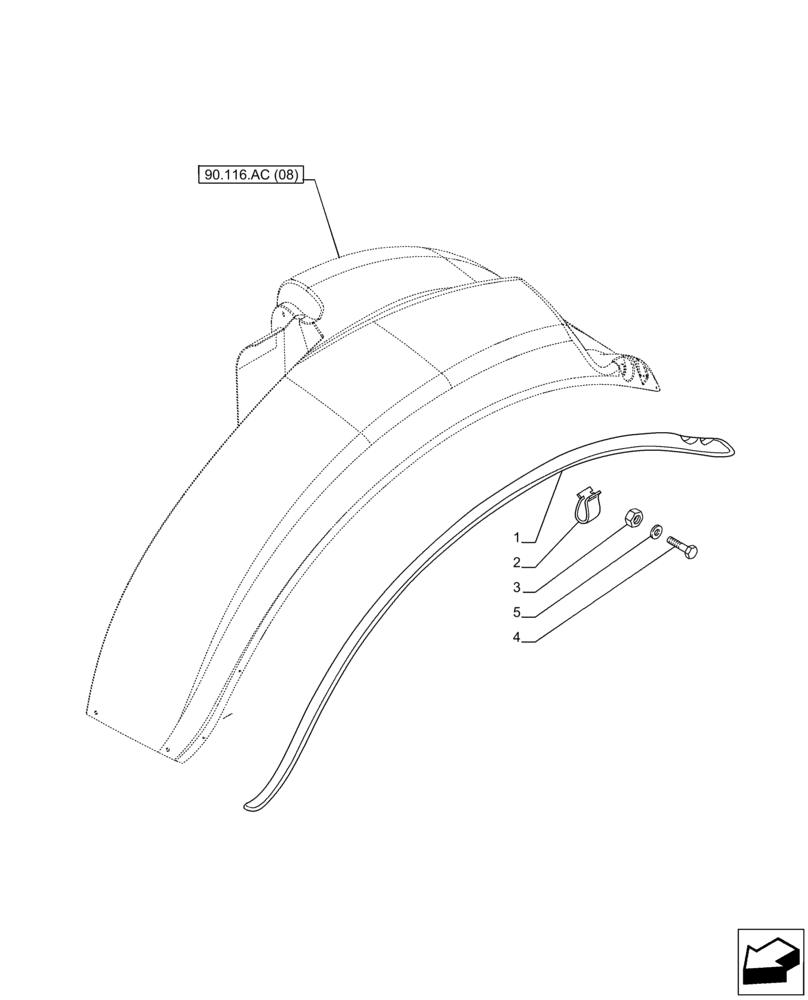

Схема запчастей Case IH PUMA 165 - (90.116.AC[11]) - VAR - 758182, 758340 - WIDE REAR FENDERS, EXTENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
4
1
5
90.116.ac (08)
2

Артикул

Название

Примечание

Количество

1

84349866

FENDER EXTENSION

LH, 75mm Small

1шт.

1

84349867

FENDER EXTENSION

RH, 75mm Small

1шт.

2

87622826

SPRING CLIP,0.5mm Thk

14шт.

3

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

8шт.

4

10977821

BOLT,M5 x 19.65mm OAL, Cl 8.8

8шт.

5

12638101

WASHER,5.2mm ID x 14mm OD x 1mm Thk

16шт.

Выбрано товаров: 6
