Запчасти Case IH PUMA 150 (05.100.04[01]) - MAINTENANCE PARTS - FILTERS (05) - SERVICE & MAINTENANCE

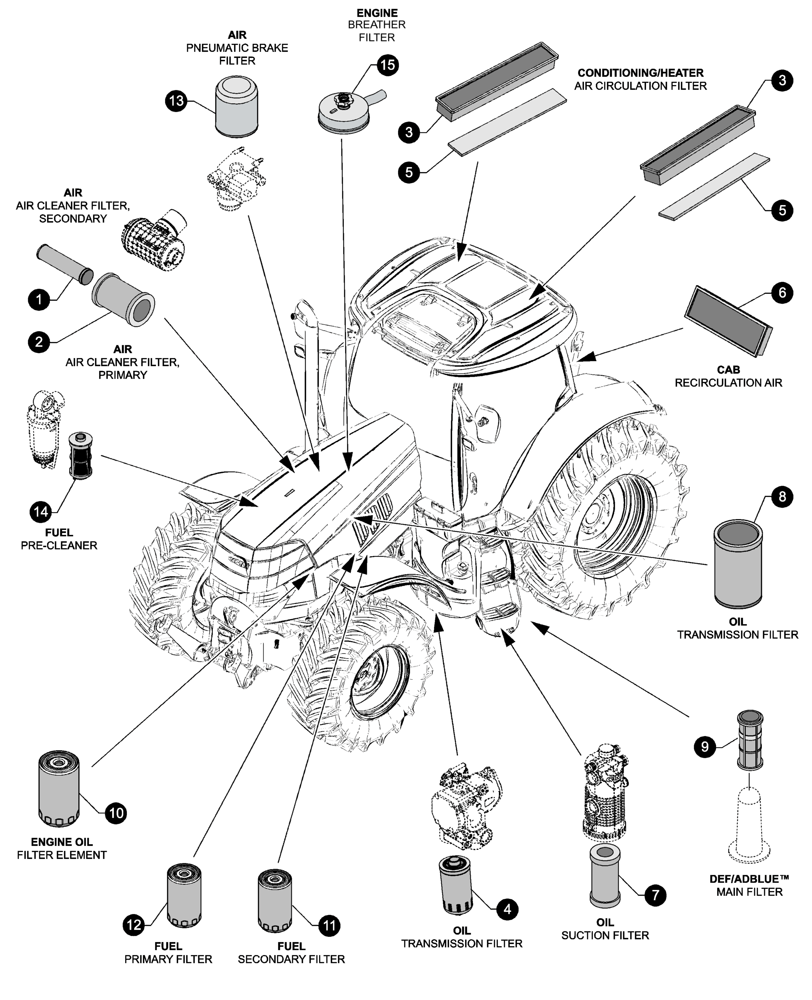

Схема запчастей Case IH PUMA 150 - (05.100.04[01]) - MAINTENANCE PARTS - FILTERS (05) - SERVICE & MAINTENANCE
15
12
4
8
3
7
1
5
2
14
9
6
11
13
10
3
5

Артикул

Название

Примечание

Количество

1

47506851

AIR FILTER,87.6mm ID x 108.5mm OD x 403mm L

Secondary Cartridge, Every 1200 hours or every 2 years

1шт.

2

82028977

AIR FILTER

Primary Cartridge, Every 600 hours

1шт.

3

87726675

CAB FILTER,Fresh Air, 550mm x 100mm x 64mm, Paper

Heating, Conditioning, w/High Profile Roof, Every 600 hours

2шт.

4

84226263

HYDRAULIC OIL FILTER,116.8mm OD x 295.4mm L, 1" 3/8-12UNF

Transmission/Pump, Every 600 hours

1шт.

Valid for Powershift Models only

1шт.

4

84417139

ELEMENT,267.5mm L, 11 Micron

Transmission/Pump, Every 600 hours

1шт.

For the first Replacement order also : PN 84417137 Housing + PN 84550359 O-Ring

1шт.

Valid for CVT / CVX Models only

1шт.

5

87726694

FOAM

Outer Cartridge, Foam, Every 1200 hours or annually

2шт.

6

87726699

CAB FILTER,Fresh Air, 380mm x 130mm x 49mm, Paper

Inner Thick Cartridge, Recirculation, Every 1200 hours or annually

1шт.

7

87708150

HYDRAULIC OIL FILTER,Filter & Seal

Suction, 32 Micron, Every 600 hours

1шт.

8

87588814

HYDRAULIC OIL FILTER,151mm L

Transmission/Pump, Every 600 hours

1шт.

Valid for CVT / CVX Models only

1шт.

9

47364243

FILTER

DeNOx2, Every 3600 hours or every 2 years

1шт.

10

84228488

ENGINE OIL FILTER,95mm OD x 171mm L, M27x2-6H

on Engine, Spin-On, Every 600 hours

1шт.

11

84412164

FUEL FILTER,94mm OD x 192mm L, M20 x 1.5, 10 Microns

on Engine, Secondary, Every 600 hours

1шт.

12

47509565

FILTER

on Engine, Fuel, Primary, Every 600 hours

1шт.

13

87638772

CARTRIDGE,165mm L

Brake Fluid Tank, Every 1200 hours or every 2 years

1шт.

14

84328598

FUEL FILTER,40mm OD x 109mm L, M14 x 1.5, 350 Microns

Pre-Cleaner, Every 600 hours

1шт.

15

42568767

FILTER

on Engine, Crankcase Breather

1шт.

Up to Engine S/N 1462087

1шт.

15

5802112500

on Engine, Crankcase Breather

FILTER

1шт.

From Engine S/N 1462088

1шт.

Выбрано товаров: 23
