Запчасти Case IH PUMA 150 (05.100.02) - INITIAL STOCKING LIST (LIST B) (05) - SERVICE & MAINTENANCE

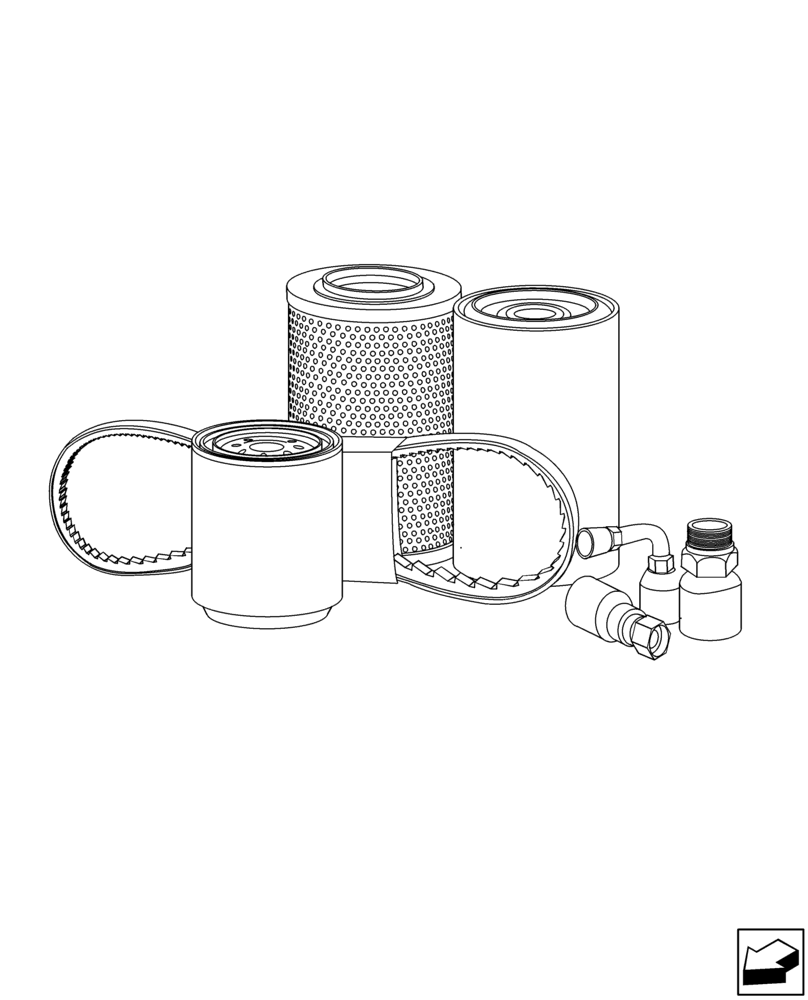

Схема запчастей Case IH PUMA 150 - (05.100.02) - INITIAL STOCKING LIST (LIST B) (05) - SERVICE & MAINTENANCE

Артикул

Название

Примечание

Количество

1

4894139

PLUG,Hex Soc, M22 x 1.5

Drain, on Engine Oil Pan

1шт.

2

2852978

O-RING,0.103" Thk x 0.924" ID, -119, Cl 7, 75 Duro

for Engine Oil Pan Drain Plug

1шт.

3

504262827

CAP

Engine Oil Filler

1шт.

4

2852774

GASKET,38mm ID x 51mm OD x 8mm Thk

for Engine Oil Filler Cap

1шт.

5

84547727

FILLER CAP,M59, Vented

Fuel Tank

1шт.

6

84206552

FILLER CAP,Male

Adblue/Urea Tank

1шт.

7

84363730

FILTER STRAINER

for Adblue/Urea Filler

1шт.

8

84284801

O-RING,3.53mm Thk x 75mm ID

for Adblue/Urea Filler

1шт.

9

2856350

SENSOR

Ksb, Water Temperature

1шт.

10

2852157

SENSOR

Thermosensor

1шт.

11

84322388

THERMOSTAT

1шт.

12

84325989

SEAL

for Thermostat P/N 84322388

1шт.

13

2853552

SENSOR

Pressure, on Engine Oil Pump

1шт.

14

4897242

SENSOR

Engine Speed Rate

1шт.

15

4890193

SENSOR

Engine Oil Prerssure & Temperature

1шт.

16

4897224

SENSOR

Thermosensor

1шт.

17

82017873

SENSOR

Pressure & Temperature

1шт.

18

82017873

SENSOR

Engine Oil Pressure

1шт.

19

82028146

SENDER UNIT

Engine Oil Pressure

1шт.

20

87745841

PRESSURE SWITCH

Air Cleaner Restrictor

1шт.

21

87482355

SENSOR

Air Cleaner

1шт.

22

47478880

TEMPERATURE SENDER,50mm, Closed

Exhaust Temperature Sensor

1шт.

23

47478995

SENSOR

Exhaust Temperature Sensor

1шт.

24

47520142

SENSOR,1000mm L

1шт.

25

84422747

SENSOR,NOx, 12V, 5 Pin, 615mm L

Nox

1шт.

26

84407735

PRESSURE SWITCH,0.40 Bar

Transmission Oil (0.40 Bar)

1шт.

27

87564684

SWITCH ASSY

Oil Pressure, on CCLS Pump

1шт.

28

87564694

PROBE

Switch, Oil Temperature

1шт.

29

87564690

TEMPERATURE SENDER,3/8" - 18

Transmission Oil

1шт.

30

82025340

RESTRICTION SWITCH

Vacuum Switch

1шт.

31

82033971

FUSE,100A, Maxi, Violet

1шт.

32

71421

BULB,R5W, 12V, 5W

1шт.

33

44995162

BULB,T-3 1/4, 12.8V, 50W

1шт.

34

9703399

BULB,H3, 12V, 55W

1шт.

35

14148090

BULB,PY21W, 12V, 21W

Tail/Turn Signal, L/Cab

1шт.

36

14144690

BULB,P21/5W, 12V, 21/5W

Tail/Stop Signal, W/Cab

1шт.

37

82013124

RELAY,12V, 30A

Power

1шт.

38

529068

BULB,#1156, 12V, 21W

1шт.

39

9847313

BULB,#894, 12V, 37.5W

1шт.

40

87642985

BULB,3157, 12V, 26.5W, Clear

1шт.

41

82012872

RELAY,70A

Ignition Load

1шт.

42

87561528

SWITCH ASSY

Ignition

1шт.

43

82030144

IGNITION KEY

Case IH

1шт.

44

82017871

RELAY,12V, 20A

Mini Iso

1шт.

45

84543528

RELAY,12V, 20A, Micro

Omron

1шт.

46

82003697

RELAY,12V, 30A

Mini, Remote Control

1шт.

47

87605247

POTENTIOMETER,4000 Ohm, 13.5 VDC

Rotary Position Sensor

1шт.

48

87577636

FLASHER UNIT

Except NA

1шт.

49

84414345

FLASHER UNIT

NA

1шт.

50

82023624

FUSE,250A, Mega

250A

1шт.

51

84174070

FUSE,30A, Orange

1шт.

52

84183837

FUSE,80A, Maxil, Natural

80A Maxifuses

1шт.

53

5190333

FUSE,40A, Maxi, Orange

1шт.

54

5173264

FUSE,30A, Maxi, Green

1шт.

55

10402190

FUSE,30A, Mini

1шт.

56

10401290

FUSE,25 amp Mini

1шт.

57

10401190

FUSE,20A, Mini, Yellow

1шт.

58

87524877

FUSE,15A, Mini, Blue

1шт.

59

87522597

FUSE,10A, Mini, Red

1шт.

60

87304226

RELAY,12V, Combined, Black

Wiper Control

1шт.

61

82030798

RELAY,12V, 70A

1шт.

62

87604423

SWITCH ASSY

Oil Pressure, for Trailer Brake

1шт.

63

82014329

SWITCH

Reed Switch N.O.

1шт.

64

84169162

SENSOR

Speed, All Effect

1шт.

65

47132449

SWITCH

Brake Contactor

1шт.

66

84142375

PARK BRAKE SWITCH

Handbrake Warning

1шт.

Выбрано товаров: 66
