(55.020.AB[06]) - VAR - 391136, 391351, 758011, 758012, 758013, 758014, 758015, 758016, 758017, 758018, 758019, 758020, 758021 - TRANSMISSION, SPEED SENSOR

Запчасти Case IH PUMA 150 (55.020.AB[06]) - VAR - 391136, 391351, 758011, 758012, 758013, 758014, 758015, 758016, 758017, 758018, 758019, 758020, 758021 - TRANSMISSION, SPEED SENSOR (55) - ELECTRICAL SYSTEMS

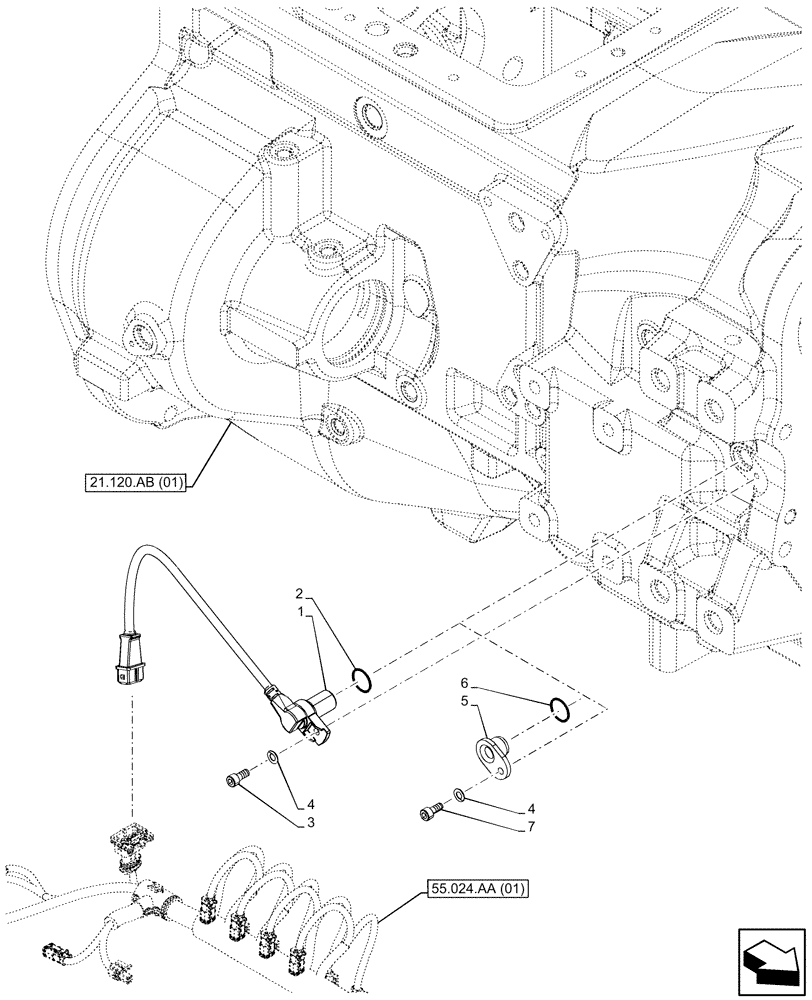

Схема запчастей Case IH PUMA 150 - (55.020.AB[06]) - VAR - 391136, 391351, 758011, 758012, 758013, 758014, 758015, 758016, 758017, 758018, 758019, 758020, 758021 - TRANSMISSION, SPEED SENSOR (55) - ELECTRICAL SYSTEMS
21.120.ab (01)
6
4
7
5
1
2
3
4
55.024.aa (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47766973

SENSOR

Speed

1шт.

2

14457380

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

3

14305720

HEX SOC SCREW,M6 x 14mm, Cl 8.8, Full Thd

1шт.

4

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

2шт.

5

87307348

PLUG,18mm ID

1шт.

Less Speed Sensor

1шт.

6

47136259

O-RING,3mm Thk x 17.2mm ID, 72 Duro

1шт.

7

14305724

HEX SOC SCREW,M6 x 14mm, Cl 8.8, Full Thd

1шт.

Выбрано товаров: 8
