Запчасти Case IH PUMA 150 (50.100.AP[06]) - VAR - 758131, 758133, 758265, 758666, 758667, 758668, 758669, 759265 - AIR CONDITIONING WITH ATC, AIR CONDITIONER, COMPONENTS (50) - CAB CLIMATE CONTROL

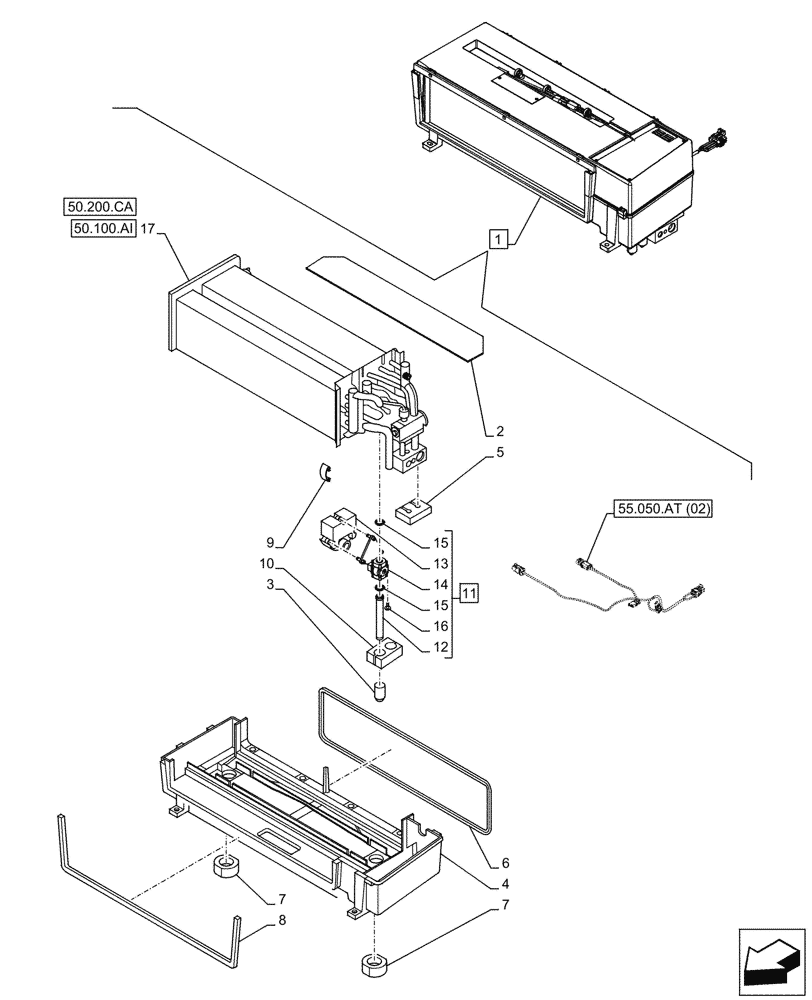

Схема запчастей Case IH PUMA 150 - (50.100.AP[06]) - VAR - 758131, 758133, 758265, 758666, 758667, 758668, 758669, 759265 - AIR CONDITIONING WITH ATC, AIR CONDITIONER, COMPONENTS (50) - CAB CLIMATE CONTROL
55.050.at (02)
14
7
7
16
1
6
2
9
13
8
5
17
15
11
4
12
15
3
10
50.200.ca
50.100.ai

Артикул

Название

Примечание

Количество

1

84233168

AIR CONDITIONER

ASSY, Electronic, Incl 2 - 17

1шт.

See also Air Conditioner Components in Figure 50.100.AP (05), 55.050.AT (03), 50.200.CA, 50.100.AI

1шт.

2

82033453

PLATE

1шт.

3

82033261

CAP,5/8"

1шт.

4

82033005

HOUSING

1шт.

5

82028953

SEAL

Evaporator

1шт.

6

82024750

SEAL,1235mm L x 5mm Thk

Blower

1шт.

7

82028942

SEAL,32mm ID x 48mm OD x20mm Thk

Drain

2шт.

8

82023564

SEAL,765.6mm L x 8mm Thk

Housing

1шт.

9

82024392

CLIP,7mm W

4шт.

10

82028943

SEAL,20mm Thk

1шт.

11

87540537

SHUT-OFF VALVE

ASSY, Incl 12 - 16

1шт.

12

87540534

PIPE

1шт.

13

87541625

ACTUATOR

1шт.

14

NSS

NOT SOLD SEPARAT

Valve, Incl in 11

1шт.

15

82037703

O-RING,3.17mm Thk x 15.88mm ID

2шт.

16

82037676

SCREW,Torx, Pan HD, 10 x 7

8шт.

17

82037665

AIR CONDITIONER

ASSY

1шт.

Выбрано товаров: 18
