(35.322.AY[09]) - VAR - 758011, 758013, 758015, 758017, 758019, 758021 - CREEPER, LOW PRESSURE, LINE

Запчасти Case IH PUMA 150 (35.322.AY[09]) - VAR - 758011, 758013, 758015, 758017, 758019, 758021 - CREEPER, LOW PRESSURE, LINE (35) - HYDRAULIC SYSTEMS

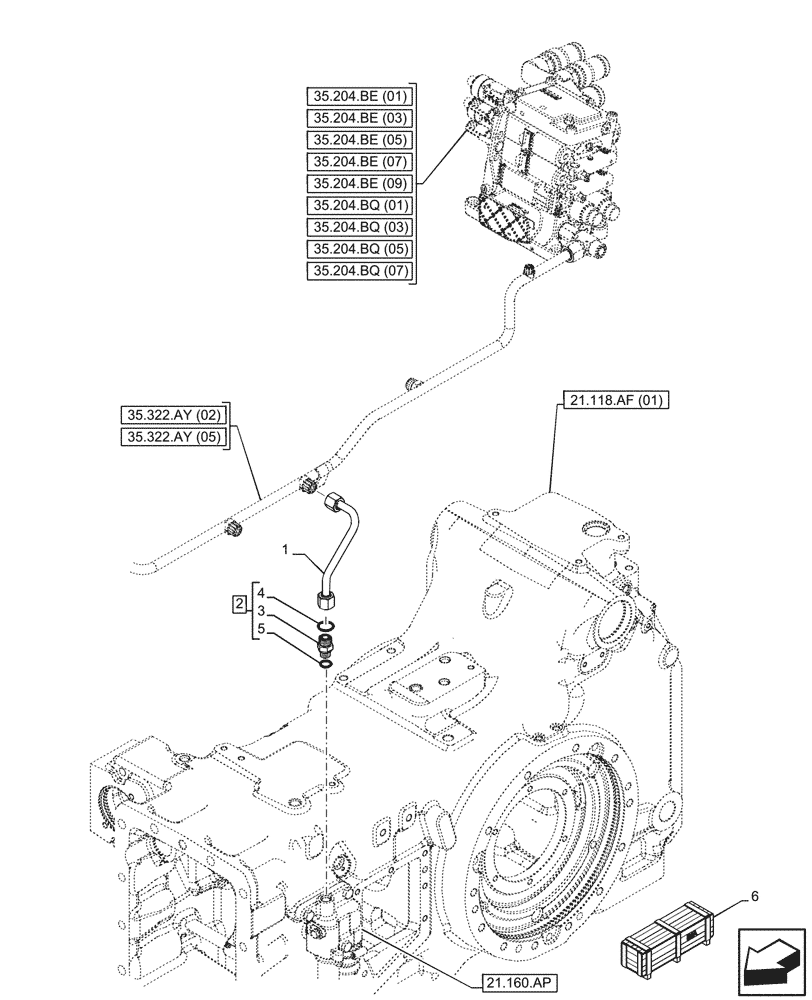

Схема запчастей Case IH PUMA 150 - (35.322.AY[09]) - VAR - 758011, 758013, 758015, 758017, 758019, 758021 - CREEPER, LOW PRESSURE, LINE (35) - HYDRAULIC SYSTEMS
35.204.be (01)
2
5
3
6
4
1
35.322.ay (05)
21.118.af (01)
35.204.be (09)
35.322.ay (02)
35.204.be (03)
35.204.be (05)
35.204.be (07)
21.160.ap
35.204.bq (07)
35.204.bq (03)
35.204.bq (01)
35.204.bq (05)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87751433

PIPE

1шт.

2

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

ASSY, Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Connector, Incl in 2

1шт.

4

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

6

710117064

DIA KIT, TRACTOR

Creeper Dia for Semi Powershift Transmission, Incl 1 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

710146084

DIA KIT, TRACTOR

Creeper Dia for Full Powershift Transmission, Incl 1 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
