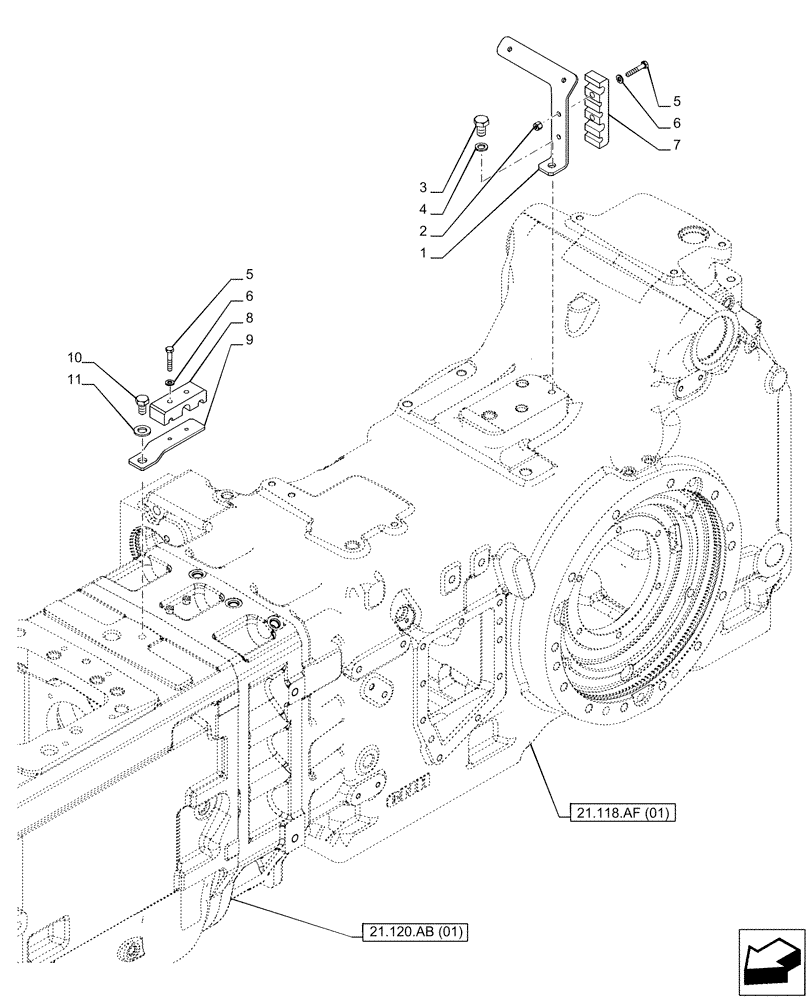

Запчасти Case IH PUMA 150 (35.322.AY[07]) - VAR - 391136, 391351, 758011, 758012, 758013, 758014, 758015 - TRANSMISSION, LOW PRESSURE BRACKET (35) - HYDRAULIC SYSTEMS

1

87630862

SUPPORT

1шт.

2

12574211

NUT,M6 x 1, Cl 8

2шт.

3

15970521

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

4

12638621

WASHER,M10 x 18 x 2

10 x 18 x 2

1шт.

5

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

4шт.

6

14496421

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

6 x 12.5 x 1.6

4шт.

7

87723144

BRACKET

1шт.

8

87531659

CLAMP BRACKET

1шт.

9

87531658

SUPPORT

1шт.

10

15540221

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

11

14496721

WASHER,13mm ID x 24mm OD x 2.5mm Thk

1шт.
