Запчасти Case IH PUMA 150 (35.322.AY[04]) - VAR - 758016, 758017, 758018, 758019, 758020, 758021 - TRANSMISSION, LOW PRESSURE, LINE (35) - HYDRAULIC SYSTEMS

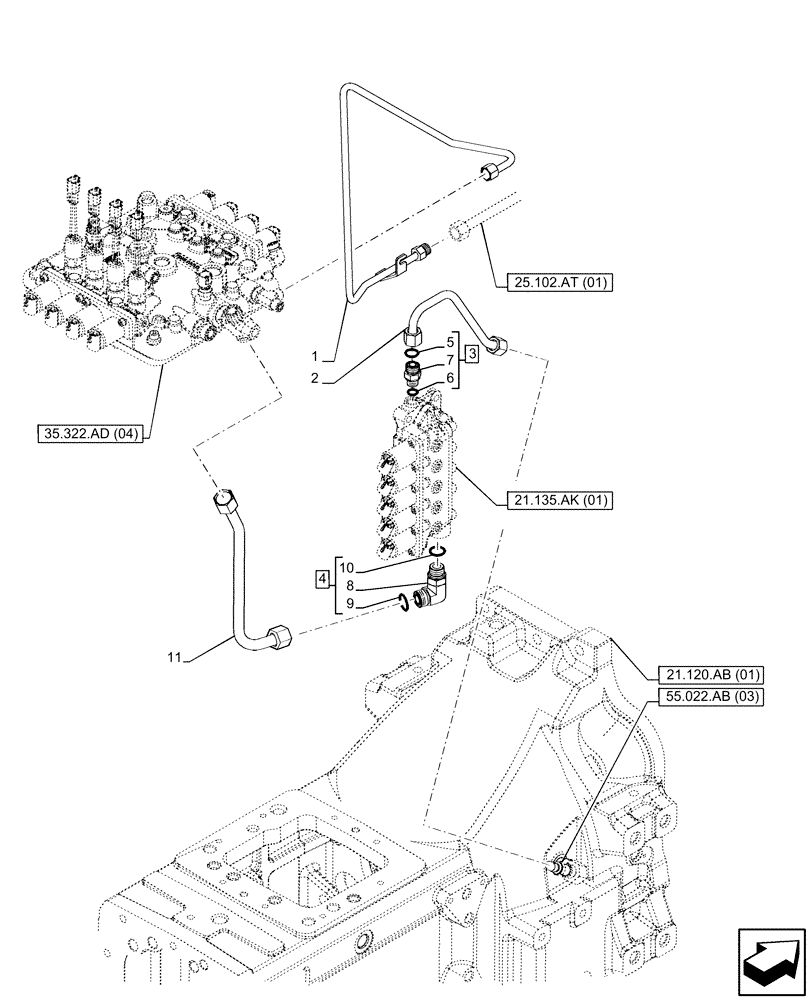

Схема запчастей Case IH PUMA 150 - (35.322.AY[04]) - VAR - 758016, 758017, 758018, 758019, 758020, 758021 - TRANSMISSION, LOW PRESSURE, LINE (35) - HYDRAULIC SYSTEMS
25.102.at (01)
4
3
5
11
21.135.ak (01)
8
7
2
6
10
1
9
21.120.ab (01)
55.022.ab (03)
35.322.ad (04)

Артикул

Название

Примечание

Количество

1

87519147

PIPE

Front Differential Lock

1шт.

2

87671396

PIPE

Clutch

1шт.

3

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

ASSY, Incl 5 - 7

1шт.

4

5192286

90 ELBOW,1-14" ORFS x M22 x 1.5

ASSY, Incl 8 - 10

1шт.

5

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

6

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

1шт.

8

NSS

NOT SOLD SEPARAT

Elbow, Incl in 4

1шт.

9

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

10

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

11

87519109

PIPE

Valve

1шт.

Выбрано товаров: 11
