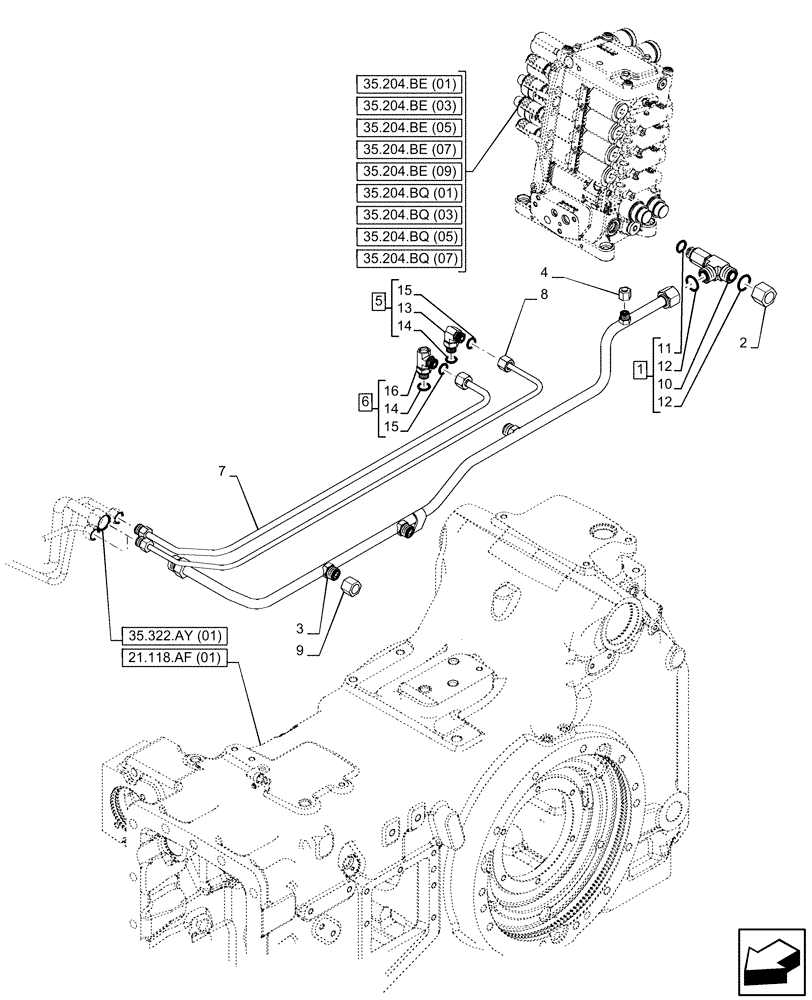

Запчасти Case IH PUMA 150 (35.322.AY[02]) - VAR - 391136, 391351, 758011, 758012, 758013, 758014, 758015, 758016, 758017, 758018, 758019, 758020, 758021 - TRANSMISSION, LOW PRESSURE, LINE (35) - HYDRAULIC SYSTEMS

1

87571078

HYD CONNECTOR,1"-14 x 1"-14 x M18 x 1.5

ASSY, Incl 10 - 12 (Qty 2)

1шт.

2

9840576

CAP,1" - 14 ORFS

1шт.

3

87660983

PIPE

Remote Valve

1шт.

4

87668376

CAP,9/16"-18 Inch THD

1шт.

5

5194076

ELBOW,90 Deg, 11/16-16 ORFS x M16 x 1.5 ORB

ASSY, Incl 13, 14 (Qty 1), 15 (Qty 1)

1шт.

6

87690352

HYD CONNECTOR,11/16"-16 x M16 x 1.5 x M14 x 1.5

ASSY, Incl 14 (Qty 1), 15 (Qty 1), 16

1шт.

7

87519209

PIPE

Rear PTO Clutch

1шт.

8

87519196

PIPE

1шт.

9

47123020

PLUG,Hex

1шт.

10

NSS

NOT SOLD SEPARAT

Elbow, Incl in 1

1шт.

11

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

12

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

13

NSS

NOT SOLD SEPARAT

Elbow, Incl in 5

1шт.

14

14437885

O-RING,13.30mm ID x 2.40mm

2шт.

15

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

16

NSS

NOT SOLD SEPARAT

Elbow, Incl in 6

1шт.
