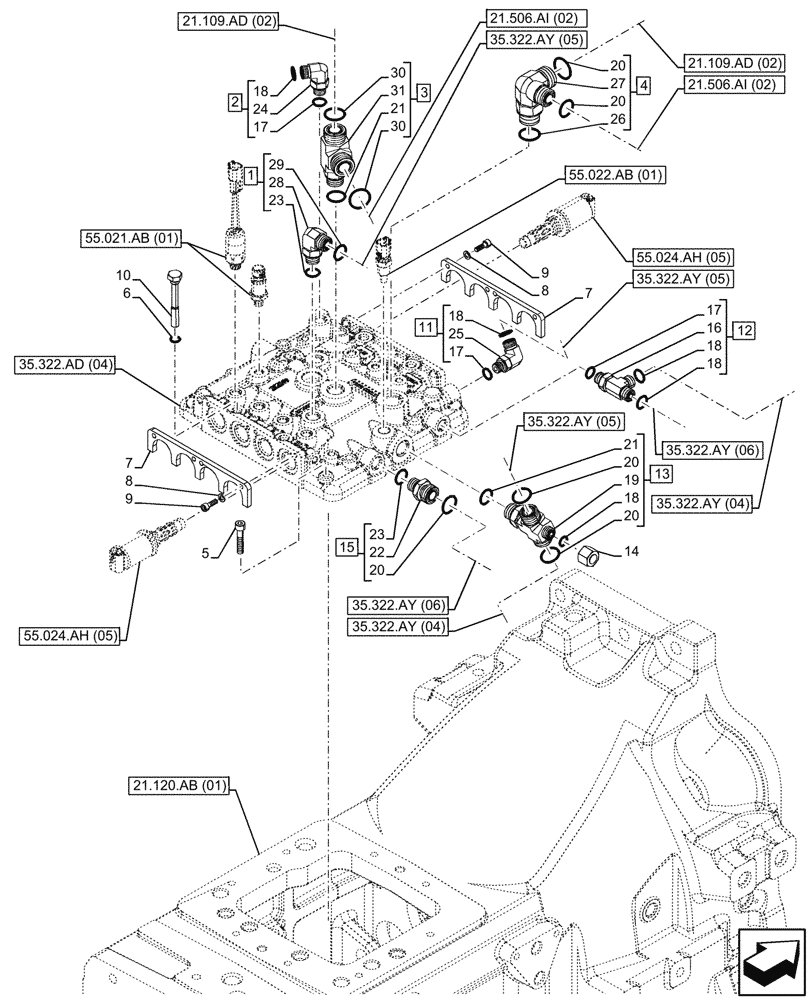

Запчасти Case IH PUMA 150 (35.322.AD[04]) - VAR - 758016, 758017, 758018, 758019, 758020, 758021 - LOW PRESSURE MANIFOLD (35) - HYDRAULIC SYSTEMS

1

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

ASSY, Incl 23 (Qty 1), 28, 29

1шт.

2

5194076

ELBOW,90 Deg, 11/16-16 ORFS x M16 x 1.5 ORB

ASSY, Incl 17 (Qty 1), 18 (Qty 1), 24

1шт.

3

47448752

TEE,1"3/16-12 ORFS x 1"3/16-12 ORFS x M22 x 1.5 ORB

ASSY, Incl 21 (Qty 1), 30, 31

1шт.

4

87519151

HYD CONNECTOR,1"3/16-12 x M27 x 2 x 1"14

ASSY, Incl 20 (Qty 2), 26, 27

1шт.

5

14306721

HEX SOC SCREW,M8 x 48mm, Cl 8.8

1шт.

6

14437685

O-RING,9.30mm ID x 2.40mm

4шт.

7

87319491

FIXING PLATE

2шт.

8

11197779

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

8шт.

9

14433121

HEX SOC SCREW,M6 x18mm, Cl 8.8, Full Thd

8шт.

10

47126246

BOLT,Hex, M10 x 1.25 x 78mm, Spcl

4шт.

11

5188442

HYD CONNECTOR,11/16-16 ORFS x M14 x 1.5 ORB

ASSY, Incl 17 (Qty 1), 18 (Qty 1), 25

1шт.

12

87336785

HYD CONNECTOR,11/16"-16 ORFS x 11/16"-16 ORFS x M16 x 1.5 ORB

ASSY, Incl 16, 17 (Qty 1), 18 (Qty 2_)

1шт.

13

87519159

HYD CONNECTOR,1"-14 x M22 x 1.5 x 1"-14

ASSY, Incl 18 (Qty 1), 19, 20 (Qty 2), 21 (Qty 1)

1шт.

14

47136652

PLUG,11/16"-16 ORFS

1шт.

15

5185046

HYD CONNECTOR,1-14 ORFS x M18 x 1.5 ORB

ASSY, Incl 20 (Qty 1), 22, 23 (Qty 1)

1шт.

16

NSS

NOT SOLD SEPARAT

Fitting, Incl in 12

1шт.

17

14437885

O-RING,13.30mm ID x 2.40mm

3шт.

18

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

5шт.

19

NSS

NOT SOLD SEPARAT

Elbow, Incl in 13

1шт.

20

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

5шт.

21

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

22

NSS

NOT SOLD SEPARAT

Connector, Incl in 15

1шт.

23

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

24

NSS

NOT SOLD SEPARAT

Elbow, Incl in 2

1шт.

25

NSS

NOT SOLD SEPARAT

Elbow, Incl in 11

1шт.

26

14438185

O-RING,24mm ID x 3mm

1шт.

27

NSS

NOT SOLD SEPARAT

Elbow, Incl in 4

1шт.

28

NSS

NOT SOLD SEPARAT

Elbow, Incl in 1

1шт.

29

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

30

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

2шт.

31

NSS

NOT SOLD SEPARAT

1шт.
