Запчасти Case IH PUMA 150 (35.300.AN[02]) - VAR - 391155, 758037, 758038, 758039, 758040, 758041, 758042, 758043, 758044 - OIL FILTER, W/O TRAILER BRAKE VALVE (35) - HYDRAULIC SYSTEMS

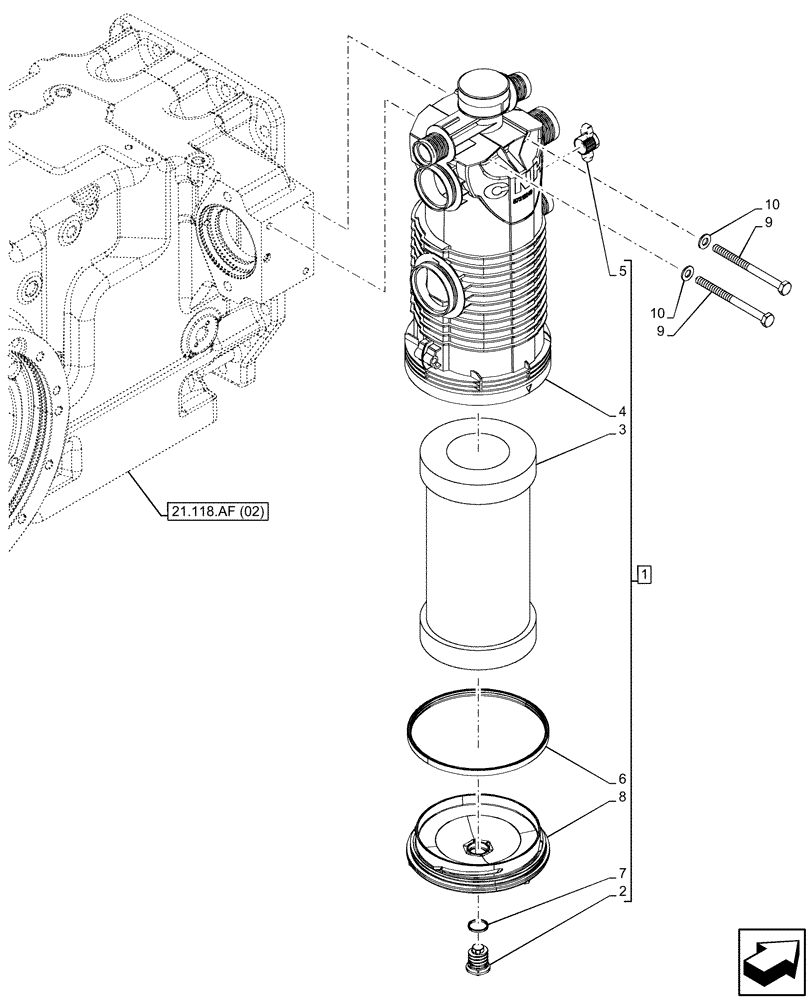

Схема запчастей Case IH PUMA 150 - (35.300.AN[02]) - VAR - 391155, 758037, 758038, 758039, 758040, 758041, 758042, 758043, 758044 - OIL FILTER, W/O TRAILER BRAKE VALVE (35) - HYDRAULIC SYSTEMS
21.118.af (02)
4
6
1
3
8
9
2
9
10
5
10
7

Артикул

Название

Примечание

Количество

1

87313049

FILTER ASSY

ASSY, Incl 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

3

87708150

HYDRAULIC OIL FILTER,Filter & Seal

1шт.

4

NSS

NOT SOLD SEPARAT

1шт.

5

87705160

ARRESTER

1шт.

6

NSS

NOT SOLD SEPARAT

Gasket, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Oring, Incl in 1

1шт.

8

87705159

FILTER COVER

Cover, Incl in 1

1шт.

9

15972421

SCREW,Hex, M10 x 1.25 x 130mm, Cl 8.8

2шт.

10

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

Выбрано товаров: 10
