Запчасти Case IH PUMA 150 (35.204.BW[04]) - VAR - 758061 - 5 REMOTE CONTROL VALVES, RESERVOIR (35) - HYDRAULIC SYSTEMS

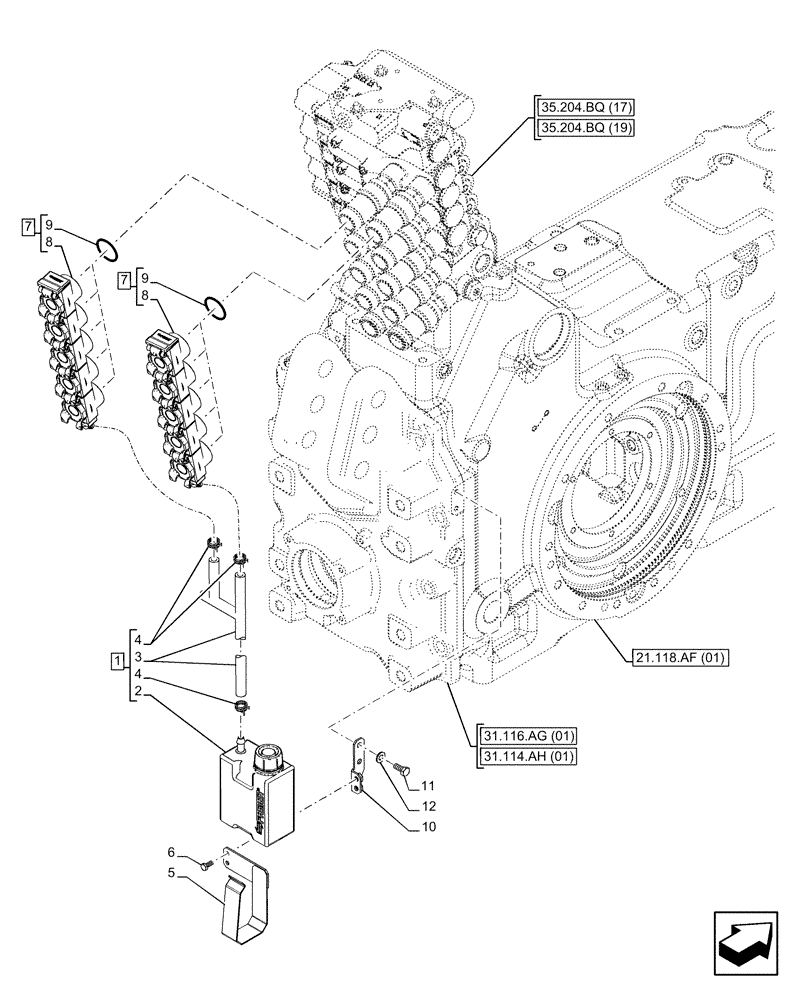

Схема запчастей Case IH PUMA 150 - (35.204.BW[04]) - VAR - 758061 - 5 REMOTE CONTROL VALVES, RESERVOIR (35) - HYDRAULIC SYSTEMS
35.204.bq (17)
4
12
8
1
5
9
6
4
8
7
10
9
2
7
11
3
21.118.af (01)
31.114.ah (01)
35.204.bq (19)
31.116.ag (01)

Артикул

Название

Примечание

Количество

1

84287277

RESERVOIR, HYDRAULIC

ASSY, Incl 2 - 4

1шт.

2

87555441

RESERVOIR, HYDRAULIC,600ml

600ml

1шт.

3

84253966

KIT

1шт.

4

13423370

CLAMP,13.6mm - 15.1mm

3шт.

5

84312030

SUPPORT

1шт.

6

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

7

84338826

DUST CAP

ASSY, Black Clips, Incl 8 (Qty 1), 9 (Qty 5)

2шт.

8

NSS

NOT SOLD SEPARAT

Quintuple Dust Cap, Incl in 7

2шт.

9

14454580

O-RING,34.65mm ID x 1.78mm

10шт.

10

84311423

SUPPORT

1шт.

11

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

12

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

Выбрано товаров: 12
