Запчасти Case IH PUMA 150 (35.204.BS[06]) - VAR - 758065 - 2 ELECTRONIC MID MOUNTED VALVES, COMPONENTS (35) - HYDRAULIC SYSTEMS

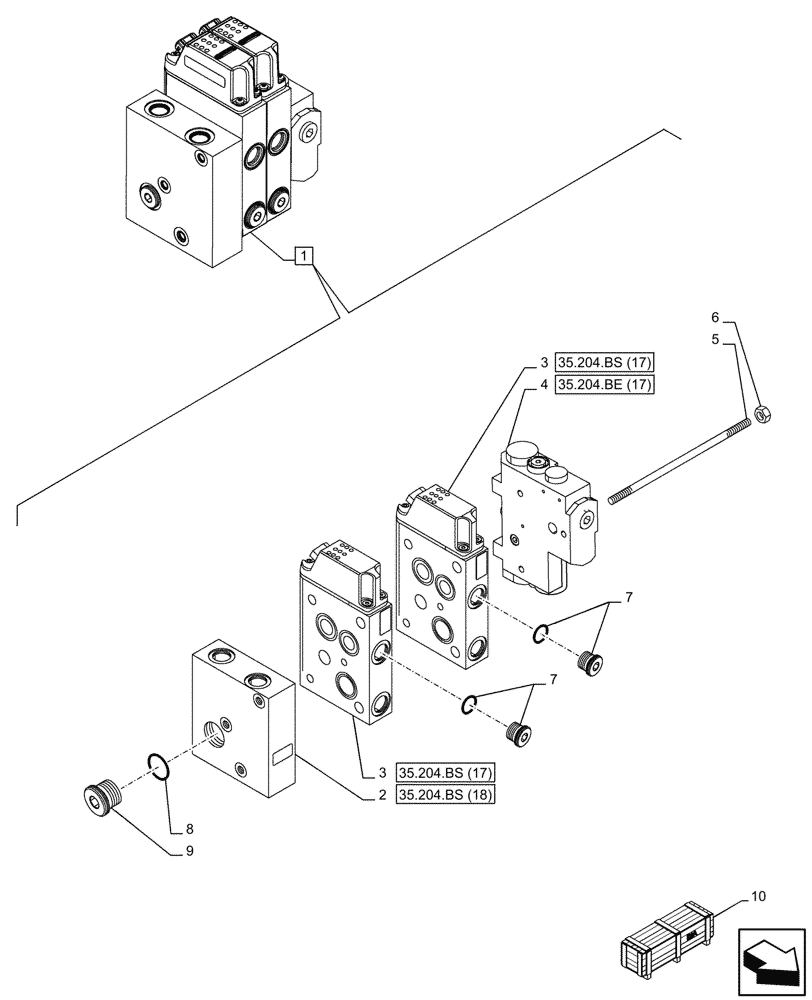

Схема запчастей Case IH PUMA 150 - (35.204.BS[06]) - VAR - 758065 - 2 ELECTRONIC MID MOUNTED VALVES, COMPONENTS (35) - HYDRAULIC SYSTEMS
35.204.be (17)
6
4
35.204.bs (17)
1
5
9
8
10
35.204.bs (18)
7
3
3
35.204.bs (17)
7
2

Артикул

Название

Примечание

Количество

1

84570227

CONTROL VALVE

ASSY, Incl 2 - 9

1шт.

2

84381621

VALVE SECTION

1шт.

3

84467081

HYDRAULIC VALVE

2шт.

3

84467081R

REMAN-HYD VALVE

Reman Valve

2шт.

3

84467081C

CORE-VALVE HYD

Core Return Number

2шт.

4

84230200

HYD VALVE SECTION

1шт.

5

5195168

TIE-ROD,M8

3шт.

6

5195169

NUT,M8

3шт.

7

47554504

KIT,M5 x 18mm, Cl 10.9mm

4шт.

8

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.

9

47129435

PLUG

1шт.

10

719763074

DIA KIT, TRACTOR

Electronic Mid Mount Valve 2 Slice W/ O Joystick, Incl 1

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 13
