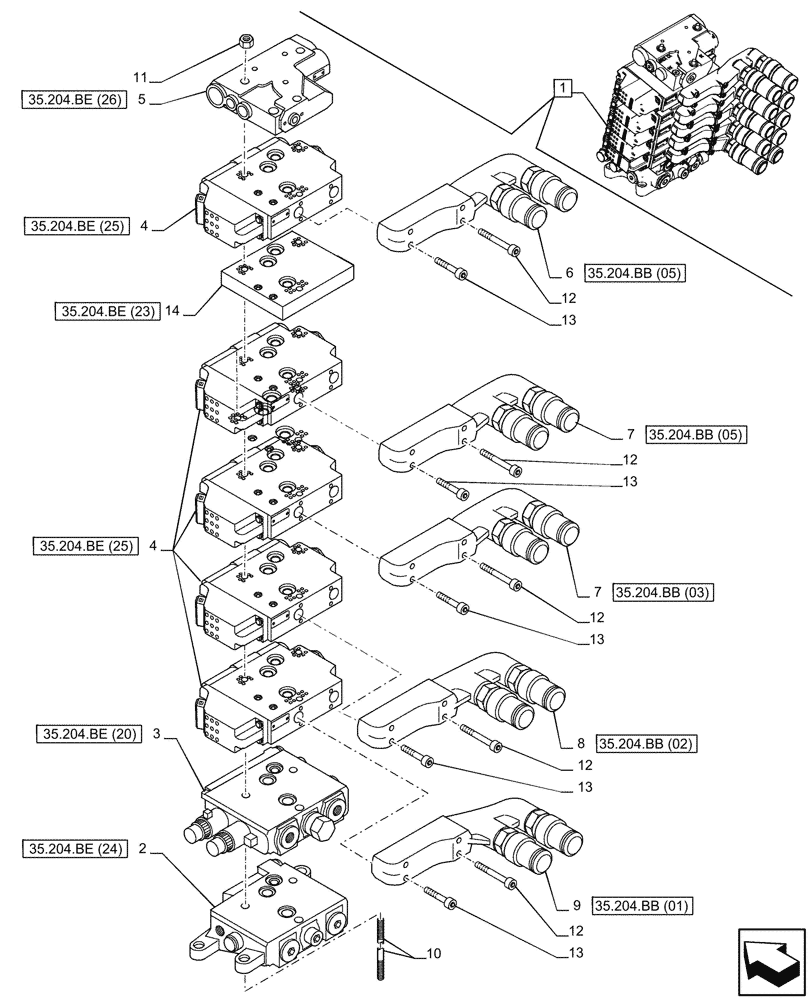

Запчасти Case IH PUMA 150 (35.204.BQ[20]) - VAR - 758061 - 5 REMOTE CONTROL VALVES (EHR) (35) - HYDRAULIC SYSTEMS

1

47510084

CONTROL VALVE

ASSY, Incl 2 - 14

1шт.

2

87730706

CONTROL VALVE

ASSY

1шт.

2

87730706R

REMAN-HYD VALVE

1шт.

2

87730706C

CORE-VALVE HYD

Return Number

1шт.

3

84175671

VALVE SECTION

ASSY

1шт.

3

84175671R

REMAN-HYD VALVE

1шт.

3

84175671C

CORE-VALVE HYD

Return Number

1шт.

4

84230181

HYD VALVE SECTION

ASSY

5шт.

4

84230181R

REMAN-HYD VALVE

5шт.

4

84230181C

CORE-VALVE HYD

Return Number

5шт.

5

84230200

HYD VALVE SECTION

ASSY

1шт.

6

87381965

QUICK MALE COUPLING

ASSY, Group 4

2шт.

7

87381964

QUICK MALE COUPLING

ASSY, Group 3

1шт.

8

87381963

QUICK MALE COUPLING

ASSY, Group 2

1шт.

9

87381958

QUICK MALE COUPLING

ASSY, Group 1

1шт.

10

84151302

TRUSS ROD,331mm L

331mm

3шт.

11

5195169

NUT,M8

M8

3шт.

12

47129475

HEX SOC SCREW,M6 x 50mm

M6 x 50

10шт.

13

47129474

HEX SOC SCREW,M6 x 35mm

M6 x 50

10шт.

14

84146808

PLATE

ASSY

1шт.
