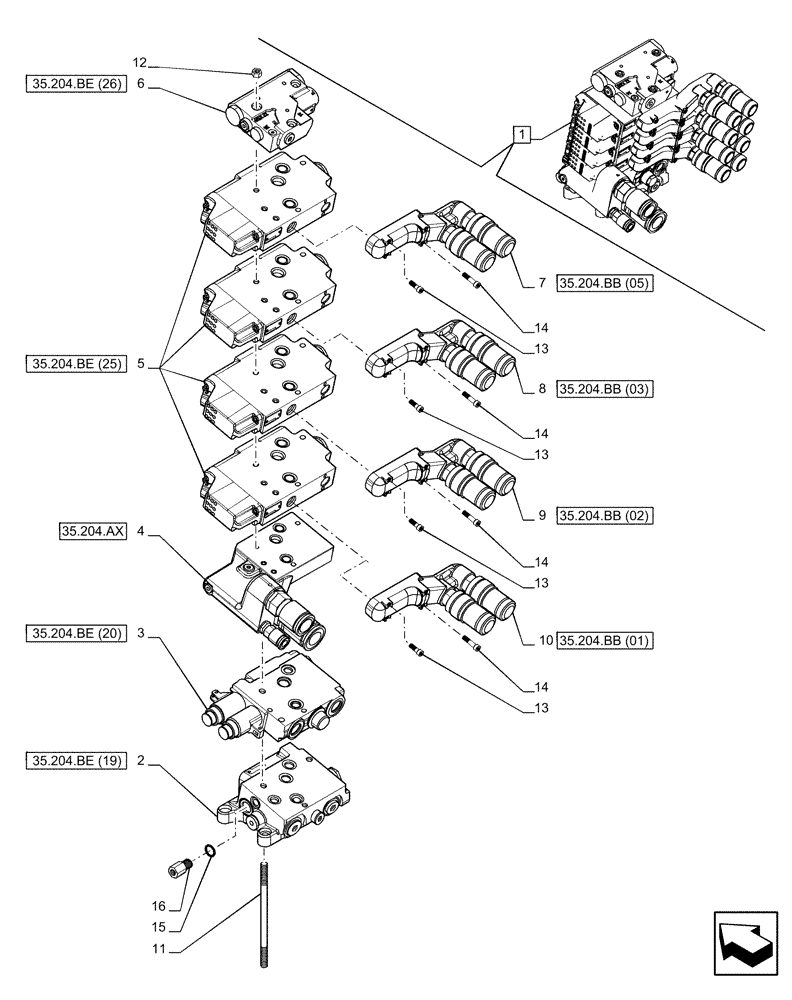

Запчасти Case IH PUMA 150 (35.204.BQ[08]) - VAR - 758060 - 4 REMOTE CONTROL VALVES (EHR W/PB), COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84266084

CONTROL VALVE

ASSY, Incl 2 - 16

1шт.

2

87730706

CONTROL VALVE

ASSY

1шт.

2

87730706R

REMAN-HYD VALVE

1шт.

2

87730706C

CORE-VALVE HYD

Return Number

1шт.

3

84175671

VALVE SECTION

ASSY

1шт.

3

84175671R

REMAN-HYD VALVE

1шт.

3

84175671C

CORE-VALVE HYD

Return Number

1шт.

4

84146807

HYD VALVE SECTION

ASSY

1шт.

5

84230181

HYD VALVE SECTION

ASSY

4шт.

5

84230181R

REMAN-HYD VALVE

4шт.

5

84230181C

CORE-VALVE HYD

Return Number

4шт.

6

84230200

HYD VALVE SECTION

ASSY

1шт.

7

87381965

QUICK MALE COUPLING

ASSY, Group 4

1шт.

8

87381964

QUICK MALE COUPLING

ASSY, Group 3

1шт.

9

87381963

QUICK MALE COUPLING

ASSY, Group 2

1шт.

10

87381958

QUICK MALE COUPLING

ASSY, Group 1

1шт.

11

84151304

THREADED TIE-ROD

3шт.

12

5195169

NUT,M8

M8

3шт.

13

47129474

HEX SOC SCREW,M6 x 35mm

M6 x 35

6шт.

14

47129475

HEX SOC SCREW,M6 x 50mm

M6 x 35

6шт.

15

5191704

CHECK VALVE

1шт.

16

5191705

O-RING,9.4mm D x 2.1mm Thk

9.4 x 2.1

1шт.
