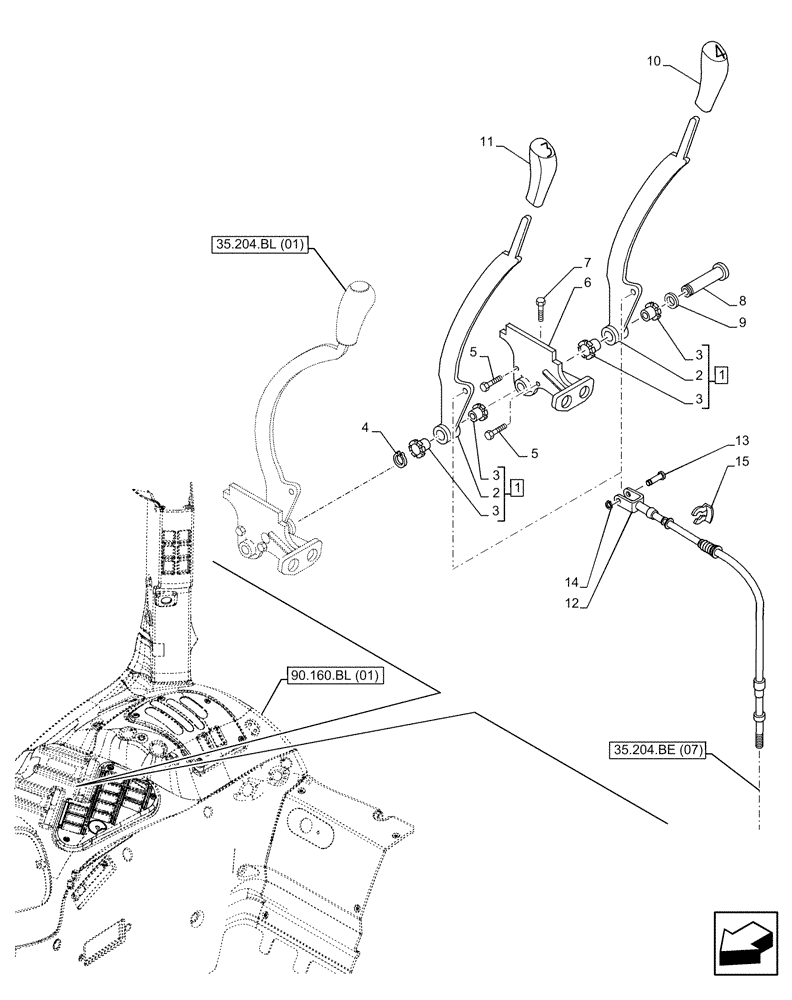

Запчасти Case IH PUMA 150 (35.204.BL[04]) - VAR - 758058 - 4 REMOTE CONTROL VALVE, CONTROL LEVER (35) - HYDRAULIC SYSTEMS

1

82036839

LEVER

ASSY, 3rd & 4th, Incl 2(Qty 1, 3 (Qty 2)

2шт.

2

NSS

NOT SOLD SEPARAT

Lever, Incl in 1

2шт.

3

82035633

BUSHING

4шт.

4

11088171

SNAP RING,M11

1шт.

5

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

6

87308465

HOUSING

1шт.

7

13806421

SET SCREW,Hex Soc, M6 x 8mm

1шт.

8

82035628

HEADED PIN,11.98mm OD x 95mm L

1шт.

9

81819651

SPRING WASHER,13mm ID x 19mm OD

1шт.

10

82037913

KNOB

N. 4, Black

1шт.

11

82037912

KNOB

N. 3, Black

1шт.

12

87678198

CABLE,1828mm L

1828mm L, Remote Control

2шт.

13

82036373

CLEVIS PIN,5.96mm OD x 18.5mm L

2шт.

14

11087771

LOCKING RING

2шт.

15

82007837

LOCKING RING

2шт.
