Запчасти Case IH PUMA 150 (35.204.BJ[03]) - VAR - 391165, 758059, 758060, 758061 - REMOTE CONTROL VALVE, LINE (35) - HYDRAULIC SYSTEMS

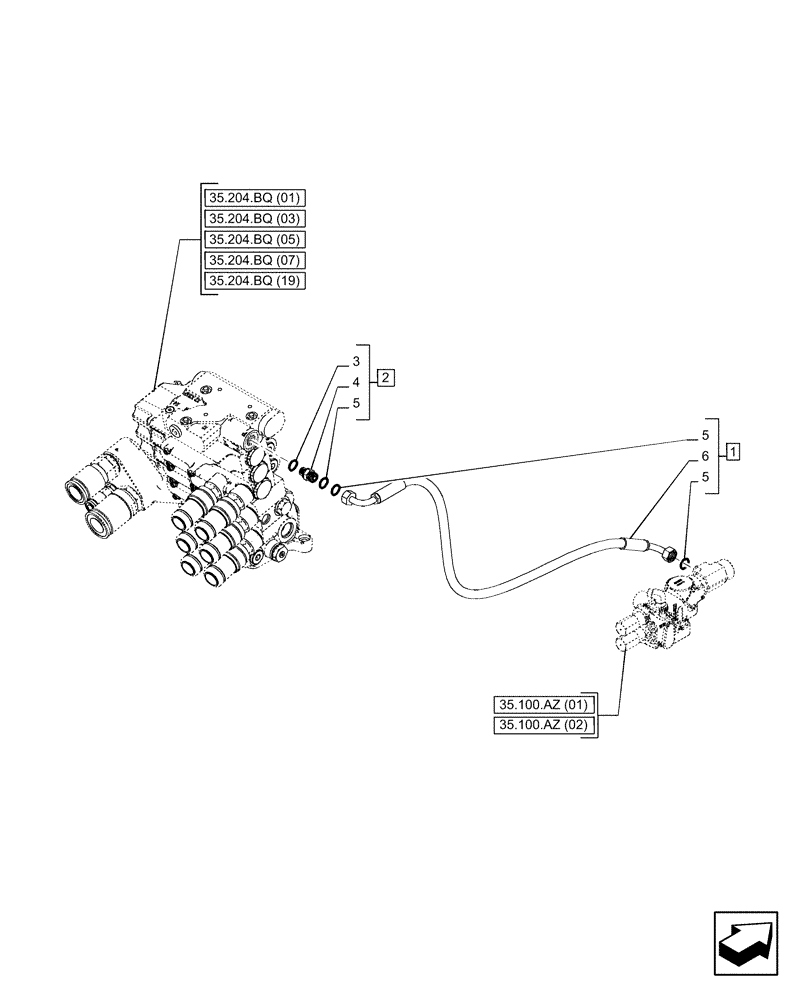

Схема запчастей Case IH PUMA 150 - (35.204.BJ[03]) - VAR - 391165, 758059, 758060, 758061 - REMOTE CONTROL VALVE, LINE (35) - HYDRAULIC SYSTEMS
35.204.bq (03)
3
2
4
6
5
5
5
1
35.204.bq (19)
35.100.az (02)
35.100.az (01)
35.204.bq (01)
35.204.bq (05)
35.204.bq (07)

Артикул

Название

Примечание

Количество

1

47473419

HYDRAULIC HOSE,8mm ID x 950mm L

ASSY, 8mm ID x 950mm, from Priority Valve to Rear Remote Control Valve, Incl 5 (Qty 2), 6

1шт.

2

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

ASSY, Incl 3, 4 , 5 (Qty 1)

1шт.

3

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

4

NSS

NOT SOLD SEPARAT

Connector, Incl in 2

1шт.

5

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

6

NSS

NOT SOLD SEPARAT

Hose, Incl in 1

1шт.

Выбрано товаров: 6
