Запчасти Case IH PUMA 150 (35.204.BE[32]) - VAR - 758057, 759365 - 3 REMOTE CONTROL VALVES, W/ MECHANICAL ENGAGEMENT, ATTACHMENT (35) - HYDRAULIC SYSTEMS

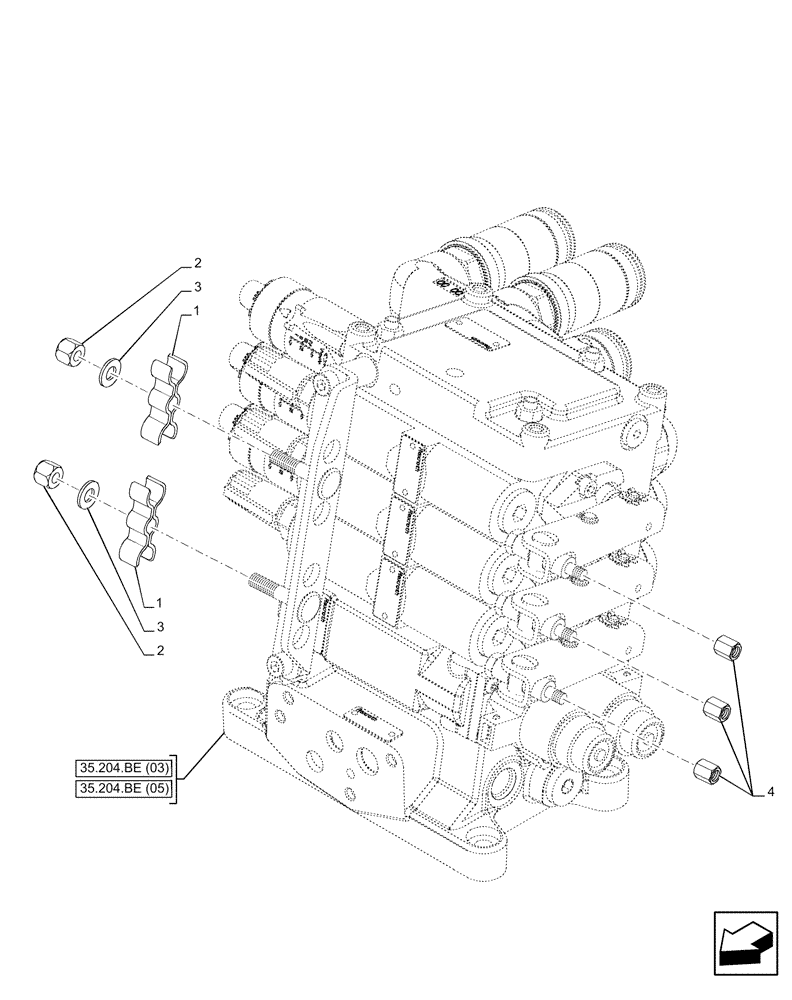

Схема запчастей Case IH PUMA 150 - (35.204.BE[32]) - VAR - 758057, 759365 - 3 REMOTE CONTROL VALVES, W/ MECHANICAL ENGAGEMENT, ATTACHMENT (35) - HYDRAULIC SYSTEMS
35.204.be (03)
4
3
1
3
2
1
2
35.204.be (05)

Артикул

Название

Примечание

Количество

1

5191951

CLAMP,3 Hoses

2шт.

2

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

2шт.

3

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

4

82012528

NUT,Hex, M6 x 1

3шт.

Выбрано товаров: 4
