(35.204.BE[31]) - VAR - 391163, 392747 - 2 REMOTE CONTROL VALVES, W/ MECHANICAL ENGAGEMENT, ATTACHMENT

Запчасти Case IH PUMA 150 (35.204.BE[31]) - VAR - 391163, 392747 - 2 REMOTE CONTROL VALVES, W/ MECHANICAL ENGAGEMENT, ATTACHMENT (35) - HYDRAULIC SYSTEMS

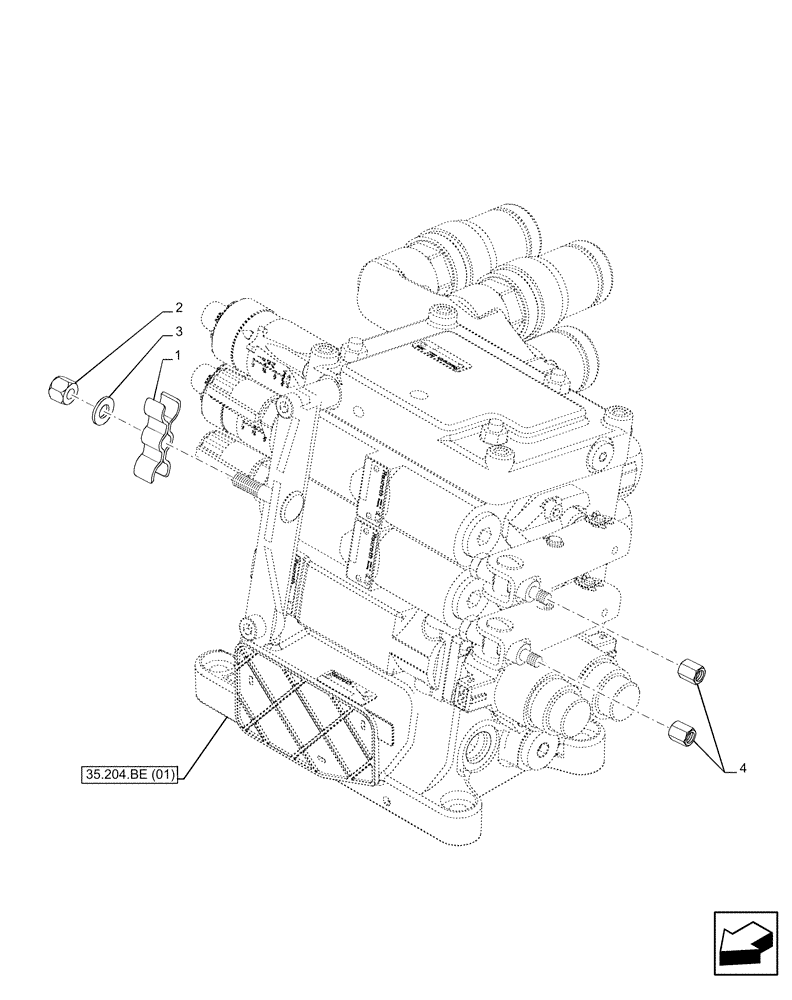

Схема запчастей Case IH PUMA 150 - (35.204.BE[31]) - VAR - 391163, 392747 - 2 REMOTE CONTROL VALVES, W/ MECHANICAL ENGAGEMENT, ATTACHMENT (35) - HYDRAULIC SYSTEMS
35.204.be (01)
3
2
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5191951

CLAMP,3 Hoses

1шт.

2

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

1шт.

3

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

4

82012528

NUT,Hex, M6 x 1

2шт.

Выбрано товаров: 4
