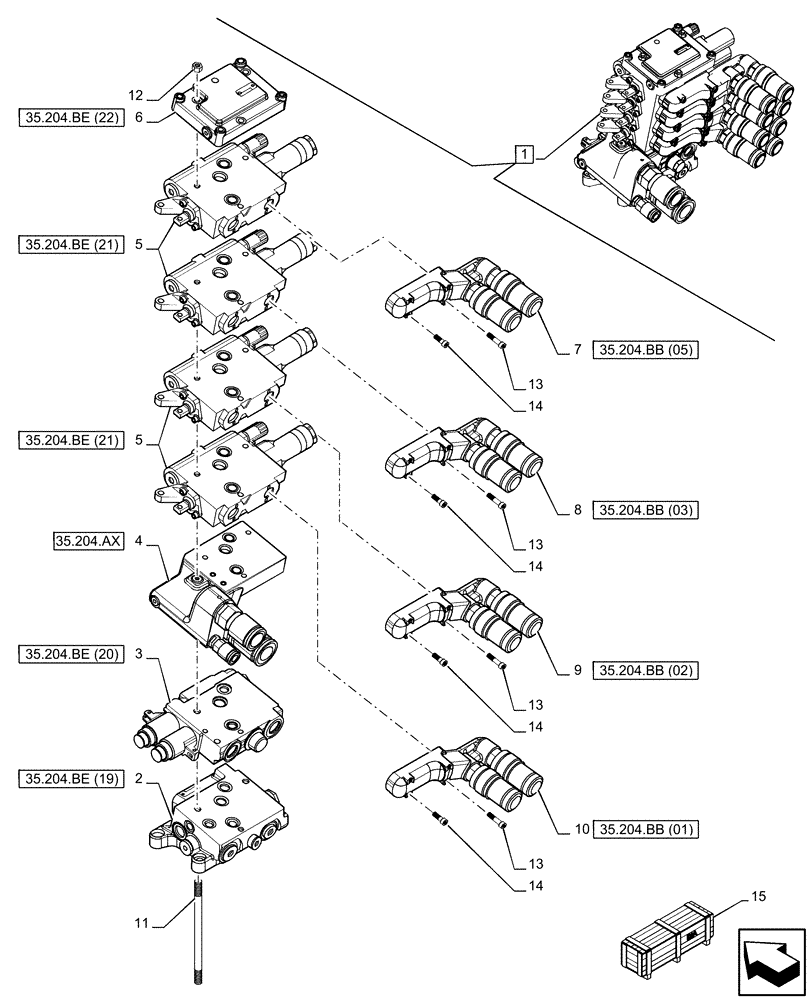

Запчасти Case IH PUMA 150 (35.204.BE[10]) - VAR - 758058 - 4 REMOTE CONTROL VALVES (MHR W/PB), COMPONENTS (35) - HYDRAULIC SYSTEMS

1

47501796

CONTROL VALVE

ASSY, Incl 2 - 14

1шт.

2

87730706

CONTROL VALVE

ASSY

1шт.

2

87730706R

REMAN-HYD VALVE

1шт.

2

87730706C

CORE-VALVE HYD

Return Number

1шт.

3

84175671

VALVE SECTION

ASSY

1шт.

3

84175671R

REMAN-HYD VALVE

1шт.

3

84175671C

CORE-VALVE HYD

Return Number

1шт.

4

84146807

HYD VALVE SECTION

ASSY

1шт.

5

87328572

HYD VALVE SECTION

ASSY

4шт.

5

87328572R

REMAN-HYD VALVE

4шт.

5

87328572C

CORE-VALVE HYD

Return Number

4шт.

6

5192188

BODY

ASSY

1шт.

7

87381965

QUICK MALE COUPLING

ASSY, Group 4

1шт.

8

87381964

QUICK MALE COUPLING

ASSY, Group 3

1шт.

9

87381963

QUICK MALE COUPLING

ASSY, Group 2

1шт.

10

87381958

QUICK MALE COUPLING

ASSY, Group 1

1шт.

11

84150182

THREADED TIE-ROD,291mm L

291mm

3шт.

12

5195169

NUT,M8

M8

3шт.

13

47129474

HEX SOC SCREW,M6 x 35mm

M6 x 35

8шт.

14

47129475

HEX SOC SCREW,M6 x 50mm

M6 x 50

8шт.

15

710020044

DIA KIT, TRACTOR

3 to 4 Additional Mechanical Remote Valve, Incl 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
