Запчасти Case IH PUMA 150 (35.204.BE[08]) - VAR - 758058 - 4 REMOTE CONTROL VALVES (MHR), COMPONENTS (35) - HYDRAULIC SYSTEMS

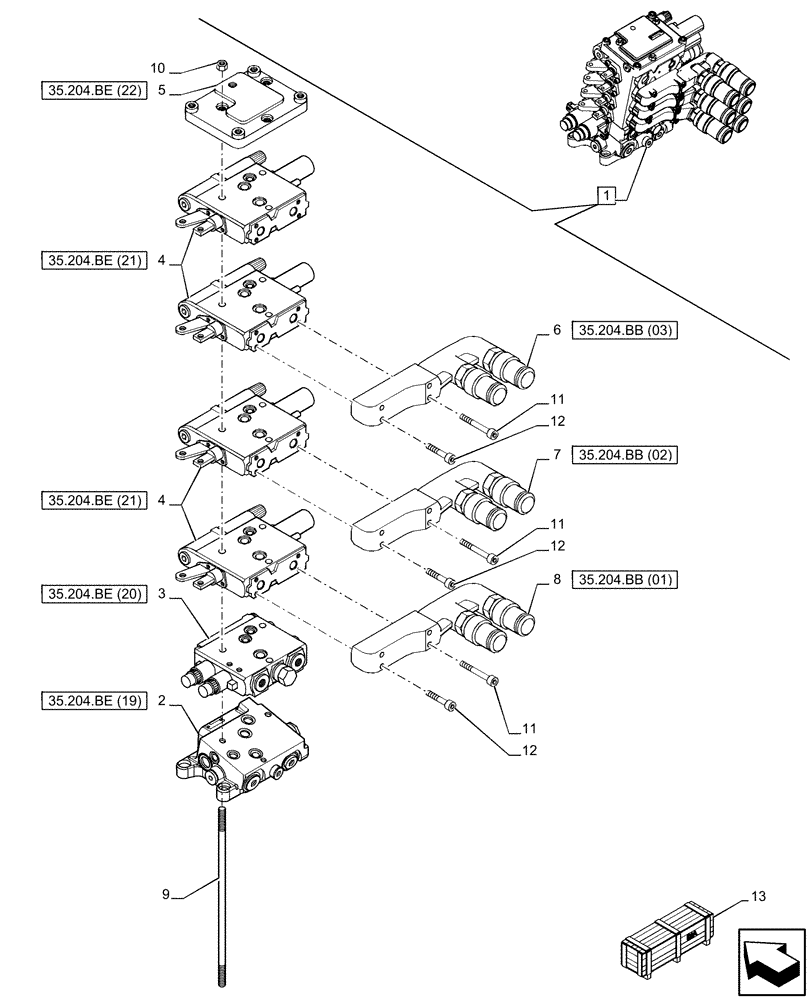

Схема запчастей Case IH PUMA 150 - (35.204.BE[08]) - VAR - 758058 - 4 REMOTE CONTROL VALVES (MHR), COMPONENTS (35) - HYDRAULIC SYSTEMS
35.204.be (20)
11
12
4
10
2
6
4
9
12
11
3
7
11
12
13
5
8
1
35.204.bb (02)
35.204.bb (01)
35.204.be (19)
35.204.be (22)
35.204.be (21)
35.204.be (21)
35.204.bb (03)

Артикул

Название

Примечание

Количество

1

47501756

CONTROL VALVE

ASSY, Incl 2 - 12

1шт.

2

87730706

CONTROL VALVE

ASSY

1шт.

2

87730706R

REMAN-HYD VALVE

1шт.

2

87730706C

CORE-VALVE HYD

Return Number

1шт.

3

84175671

VALVE SECTION

ASSY

1шт.

3

84175671R

REMAN-HYD VALVE

1шт.

3

84175671C

CORE-VALVE HYD

Return Number

1шт.

4

87328572

HYD VALVE SECTION

ASSY

4шт.

4

87328572R

REMAN-HYD VALVE

4шт.

4

87328572C

CORE-VALVE HYD

Return Number

4шт.

5

5192188

BODY

ASSY

1шт.

6

87381964

QUICK MALE COUPLING

ASSY, Group 3

1шт.

7

87381963

QUICK MALE COUPLING

ASSY, Group 2

1шт.

8

87381958

QUICK MALE COUPLING

ASSY, Group 1

1шт.

9

47129476

THREADED TIE-ROD,M8

M8

3шт.

10

5195169

NUT,M8

M8

3шт.

11

47129475

HEX SOC SCREW,M6 x 50mm

M6 x 50

6шт.

12

47129474

HEX SOC SCREW,M6 x 35mm

M6 x 35

6шт.

13

710020044

DIA KIT, TRACTOR

3 to 4 Additional Mechanical Remote Valve, Incl 9

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
