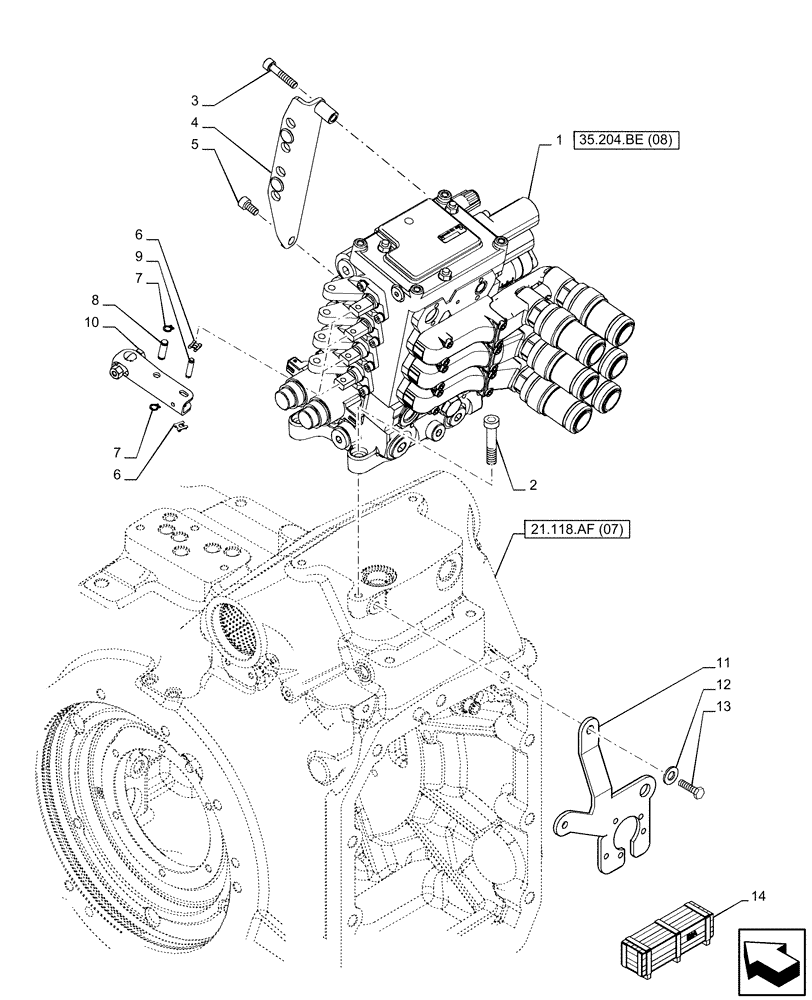

Запчасти Case IH PUMA 150 (35.204.BE[07]) - VAR - 758058 - 4 REMOTE CONTROL VALVES (MHR) (35) - HYDRAULIC SYSTEMS

1

47501756

CONTROL VALVE

ASSY

1шт.

2

14307524

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

3

14306721

HEX SOC SCREW,M8 x 48mm, Cl 8.8

1шт.

4

84486546

BRACKET

1шт.

5

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

1шт.

6

11065676

SNAP RING,M8, Ext

8шт.

7

11063971

SPRING CLIP,M6

8шт.

8

5193177

PIN,6mm OD x 29.48mm L

4шт.

9

5113008

PIN,8mm OD x 26mm L

4шт.

10

87358094

LEVER

4шт.

11

84412881

SUPPORT

1шт.

12

12638621

WASHER,M10 x 18 x 2

2шт.

13

15970521

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

14

710020044

DIA KIT, TRACTOR

3 to 4 Additional Mechanical Remote Valve, Incl 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
