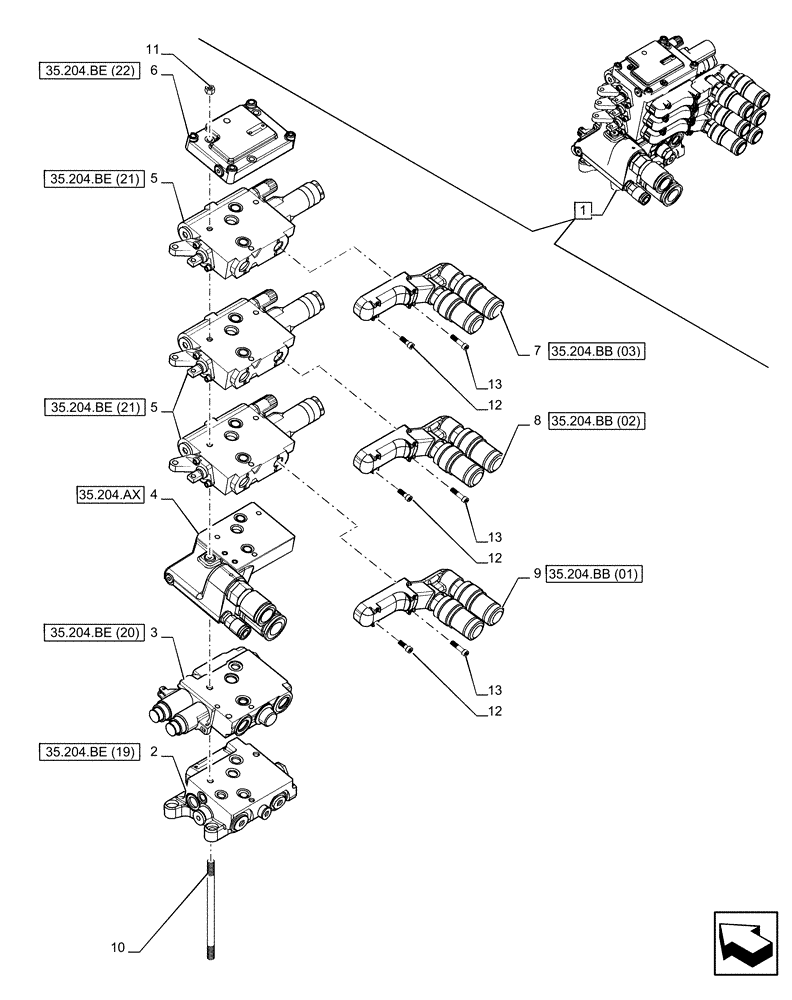

Запчасти Case IH PUMA 150 (35.204.BE[06]) - VAR - 758057 - 3 REMOTE CONTROL VALVES (MHR W/PB), COMPONENTS (35) - HYDRAULIC SYSTEMS

1

47501773

CONTROL VALVE

ASSY, Incl 2 - 13

1шт.

2

87730706

CONTROL VALVE

ASSY

1шт.

2

87730706R

REMAN-HYD VALVE

1шт.

2

87730706C

CORE-VALVE HYD

1шт.

3

84175671

VALVE SECTION

ASSY

1шт.

3

84175671R

REMAN-HYD VALVE

1шт.

3

84175671C

CORE-VALVE HYD

1шт.

4

84146807

HYD VALVE SECTION

ASSY

1шт.

5

87328572

HYD VALVE SECTION

ASSY

3шт.

5

87328572R

REMAN-HYD VALVE

3шт.

5

87328572C

CORE-VALVE HYD

Return Number

3шт.

6

5192188

BODY

ASSY

1шт.

7

87381964

QUICK MALE COUPLING

ASSY, Group 3

1шт.

8

87381963

QUICK MALE COUPLING

ASSY, Group 2

1шт.

9

87381958

QUICK MALE COUPLING

ASSY, Group 1

1шт.

10

47129476

THREADED TIE-ROD,M8

M8

3шт.

11

5195169

NUT,M8

M8

3шт.

12

47129475

HEX SOC SCREW,M6 x 50mm

M6

6шт.

13

47129474

HEX SOC SCREW,M6 x 35mm

M6

6шт.
