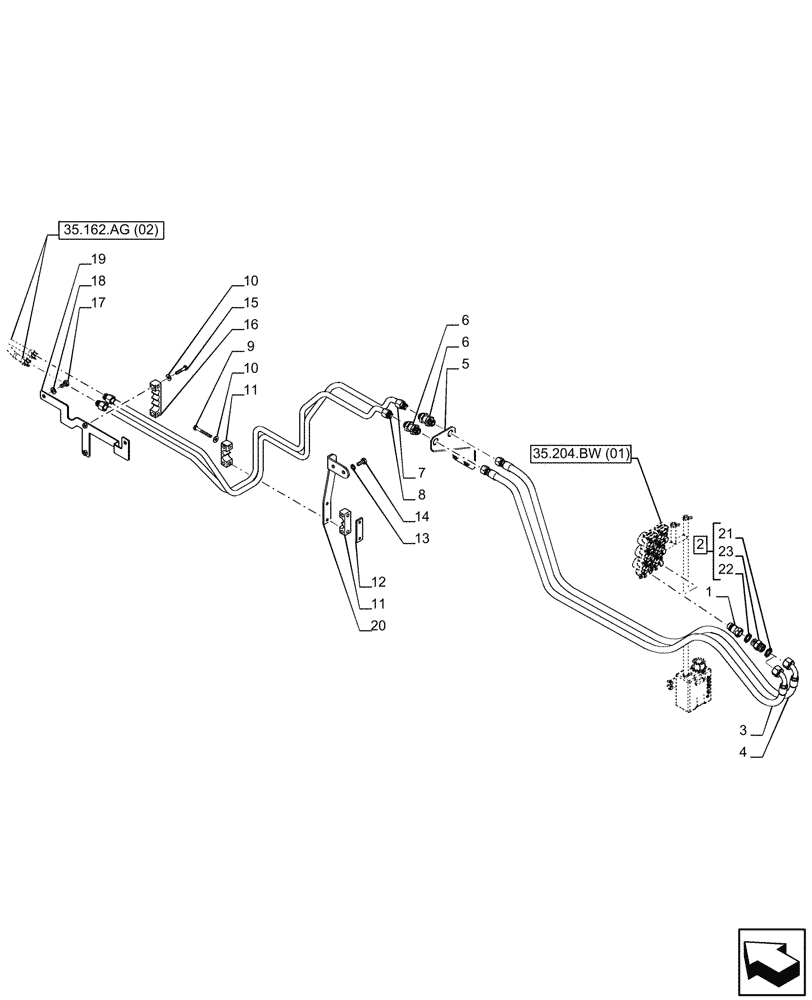

Запчасти Case IH PUMA 150 (35.162.AG[04]) - VAR - 758088 - 3 POINT HITCH, FRONT, CYLINDER, LINE (35) - HYDRAULIC SYSTEMS

1

83972881

COUPLING

2шт.

2

82019638

HYD CONNECTOR,1" - 14 ORFS x M22 x 1.5 ORB

ASSY, Incl 21 (Qty1), 22 (Qty 1), 23 (Qty 1)

2шт.

3

84572101

HYDRAULIC HOSE,12.7mm ID x 2010mm L, SAE 100R16

Raise

1шт.

4

84572097

HYDRAULIC HOSE,12.7mm ID x 2010mm L, SAE 100R16

Lower

1шт.

5

84201723

SUPPORT

1шт.

6

82039603

HYD CONNECTOR

2шт.

7

84278880

HYD TUBE,16.00mm OD

1шт.

8

84278879

HYD TUBE,16.00mm OD

1шт.

9

300510

BOLT,Hex, M8 x 65mm, Cl 8.8

2шт.

10

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

4шт.

11

84147270

CLAMP,2 Hoses

2шт.

12

84147271

PLATE

1шт.

13

86625251

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

14

11106220

BOLT,Hex, M10 x 25, 8.8, Full Thd

2шт.

15

16044021

SCREW,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

16

87579043

CLAMP,4 Hoses

1шт.

17

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

2шт.

18

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

19

47376186

BRACKET

1шт.

20

84323173

SUPPORT

1шт.

21

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

22

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

23

NSS

NOT SOLD SEPARAT

Connector, Incl in 2

2шт.
