Запчасти Case IH PUMA 150 (35.106.AQ) - VAR - 391136, 391138, 391351, 758011, 758012, 758013, 758014, 758015, 758016, 758017, 758018, 758019, 758020, 758021, 758022, 758867 - OIL COOLER FILTER, SUPPORT (35) - HYDRAULIC SYSTEMS

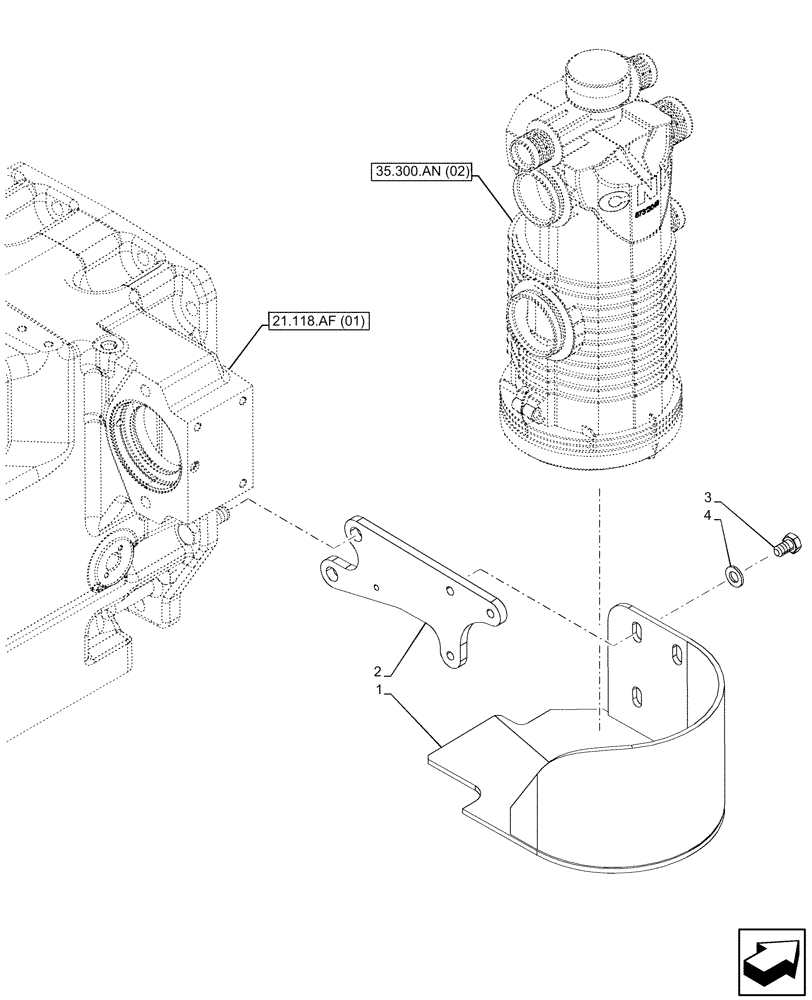

Схема запчастей Case IH PUMA 150 - (35.106.AQ) - VAR - 391136, 391138, 391351, 758011, 758012, 758013, 758014, 758015, 758016, 758017, 758018, 758019, 758020, 758021, 758022, 758867 - OIL COOLER FILTER, SUPPORT (35) - HYDRAULIC SYSTEMS
35.300.an (02)
3
2
1
4
21.118.af (01)

Артикул

Название

Примечание

Количество

1

84416093

COVER

1шт.

2

84332042

SUPPORT

1шт.

3

15540221

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

4

14496721

WASHER,13mm ID x 24mm OD x 2.5mm Thk

3шт.

Выбрано товаров: 4
