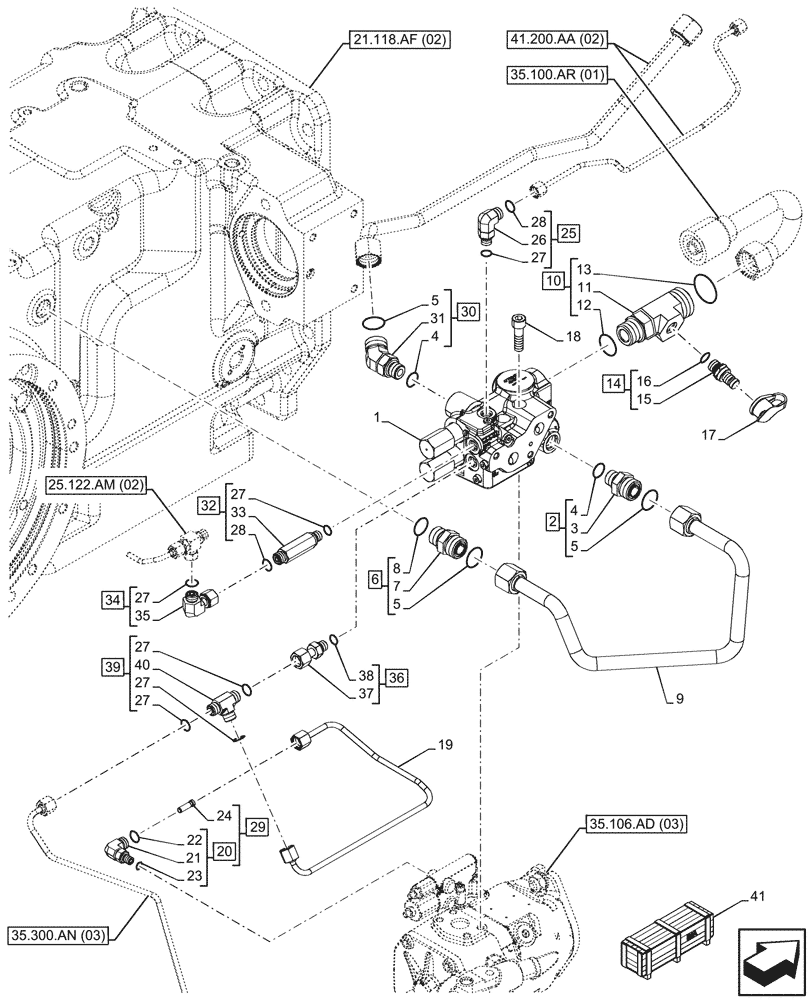

Запчасти Case IH PUMA 150 (35.100.AZ[04]) - VAR - 758037, 758039, 758040, 758042, 758044 - TRAILER BRAKE VALVE (35) - HYDRAULIC SYSTEMS

1

47738432

VALVE

1шт.

2

86579679

HYD CONNECTOR,1"-14 ORFS x M18 x 1.5 ORB

ASSY, Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Connector, Incl in 2

1шт.

4

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

4

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

5

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

5

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

6

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

ASSY, Incl 5, 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

1шт.

8

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

9

47443972

PIPE

1шт.

10

47603791

RUN TEE

ASSY, Incl 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

Tee, Incl in 10

1шт.

12

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

13

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

14

5185423

COUPLING

ASSY, Incl 15, 16

1шт.

15

NSS

NOT SOLD SEPARAT

Coupling, Incl in 14

1шт.

16

47725668

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

17

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

1шт.

18

14420321

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

19

47443969

PIPE

1шт.

20

47126658

90 ELBOW,9/16"-18 ORFS x 7/16"-20

ASSY, Incl 21 -23

1шт.

21

NSS

NOT SOLD SEPARAT

90 Elbow, Incl in 20

1шт.

22

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

23

5185507

O-RING,8.92mm ID x 1.83mm Width

1шт.

24

47126655

FILTER STRAINER

1шт.

25

84431522

ELBOW,90 Degree, 9/16"-18 ORFS x M12 x 1.5 ORB

1шт.

26

NSS

NOT SOLD SEPARAT

Elbow, Incl in 25

1шт.

27

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

27

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

5шт.

28

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

28

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

29

47126659

ELBOW,90 Deg, 9/16-18 ORFS x 7/16-20 ORB

ASSY, Incl 20 - 24

1шт.

30

84270256

FITTING

1шт.

31

NSS

NOT SOLD SEPARAT

Elbow, Incl in 7

1шт.

32

84270265

FITTING,M12 x 1.5 x 9/16"-18

ASSY, Incl 27, 28, 33

1шт.

33

NSS

NOT SOLD SEPARAT

Connector, Incl in 32

1шт.

34

84989411

ELBOW,90 Degree, 9/16"-18 ORFS x 9/16"-18 Fem Sw

ASSY, Incl 27, 35

1шт.

35

NSS

NOT SOLD SEPARAT

Elbow, Incl in 34

1шт.

36

84182082

HYD CONNECTOR,9/16"-18 x M12 x 1.5 ORB

ASSY, Incl 37, 38

1шт.

37

NSS

NOT SOLD SEPARAT

Connector, Incl in 36

1шт.

38

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

39

9840568

TEE,9/16"-18 ORFS

ASSY, Incl 27, 40

1шт.

40

NSS

NOT SOLD SEPARAT

Tee, Incl in 39

1шт.

41

710414124

DIA KIT, TRACTOR

Trailer Brake Valve, Incl 1

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
