(35.100.AR[05]) - VAR - 391136, 391351, 758011, 758012, 758013, 758014, 758015, 758016, 758017, 758018, 758019, 758020, 758021 - LIFT CYLINDER, VALVE, COMPONENTS

Запчасти Case IH PUMA 150 (35.100.AR[05]) - VAR - 391136, 391351, 758011, 758012, 758013, 758014, 758015, 758016, 758017, 758018, 758019, 758020, 758021 - LIFT CYLINDER, VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

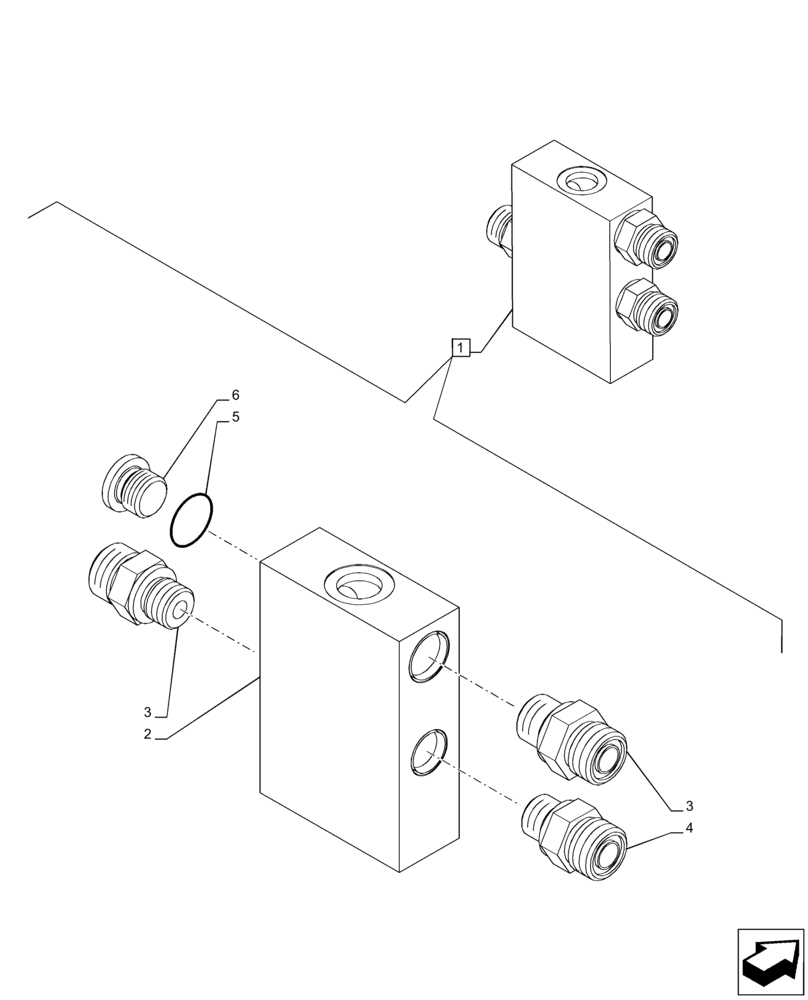

Схема запчастей Case IH PUMA 150 - (35.100.AR[05]) - VAR - 391136, 391351, 758011, 758012, 758013, 758014, 758015, 758016, 758017, 758018, 758019, 758020, 758021 - LIFT CYLINDER, VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS
6
1
2
3
4
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87570548

BLOCK

ASSY, Incl 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

3

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

2шт.

4

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

1шт.

5

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

6

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

1шт.

Выбрано товаров: 6
