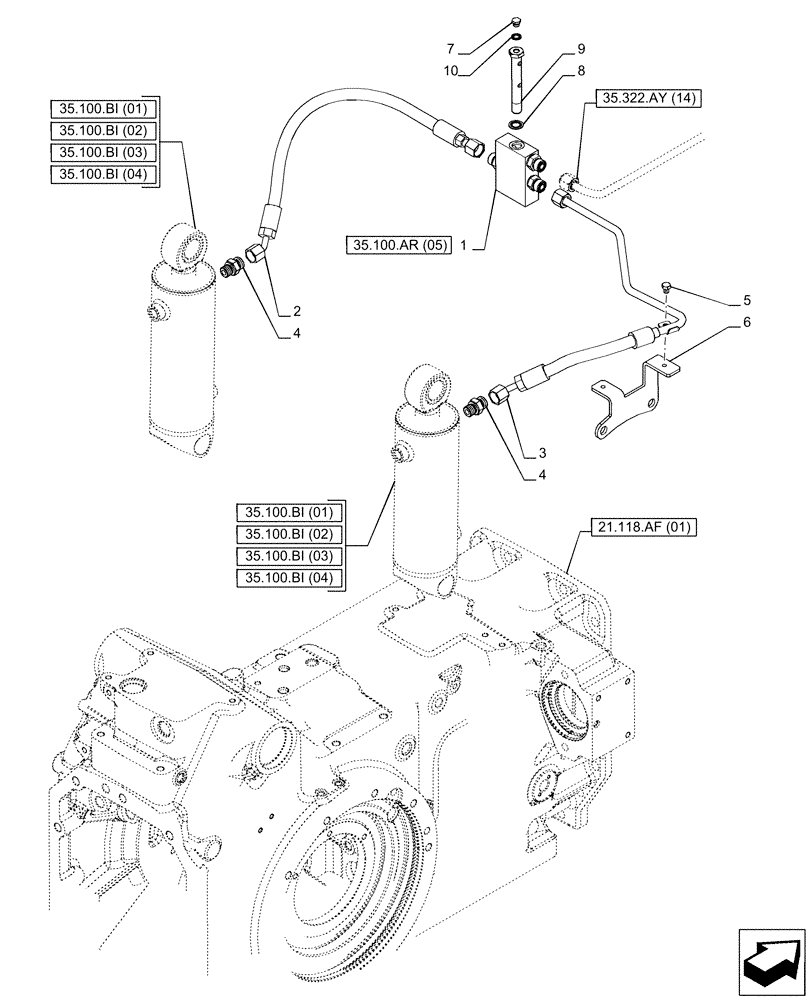

Запчасти Case IH PUMA 150 (35.100.AR[04]) - VAR - 391136, 391351, 758011, 758012, 758013, 758014, 758015, 758016, 758017, 758018, 758019, 758020, 758021, 758866, 758867, 758868, 758869 - LIFT CYLINDER, LINE (35) - HYDRAULIC SYSTEMS

1

87570548

BLOCK

1шт.

2

84477799

HYDRAULIC HOSE,9.5mm ID x 600mm L, SAE 100R16

Cylinder LH

1шт.

3

84476648

HYD TUBE

Cylinder RH

1шт.

4

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

2шт.

5

16042924

SCREW,Hex, M8 x 1.25 x 10mm, Cl 8.8, Full Thd

1шт.

6

84174056

BRACKET

1шт.

7

11903011

PLUG,M10 x 1 x 11, Cl5.8

1шт.

8

5167639

SEALING WASHER,13.4mm ID x 24mm OD x 1.5mm Thk

1шт.

9

87519177

BANJO BOLT,M16 x 1 x 115mm

1шт.

10

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

1шт.
