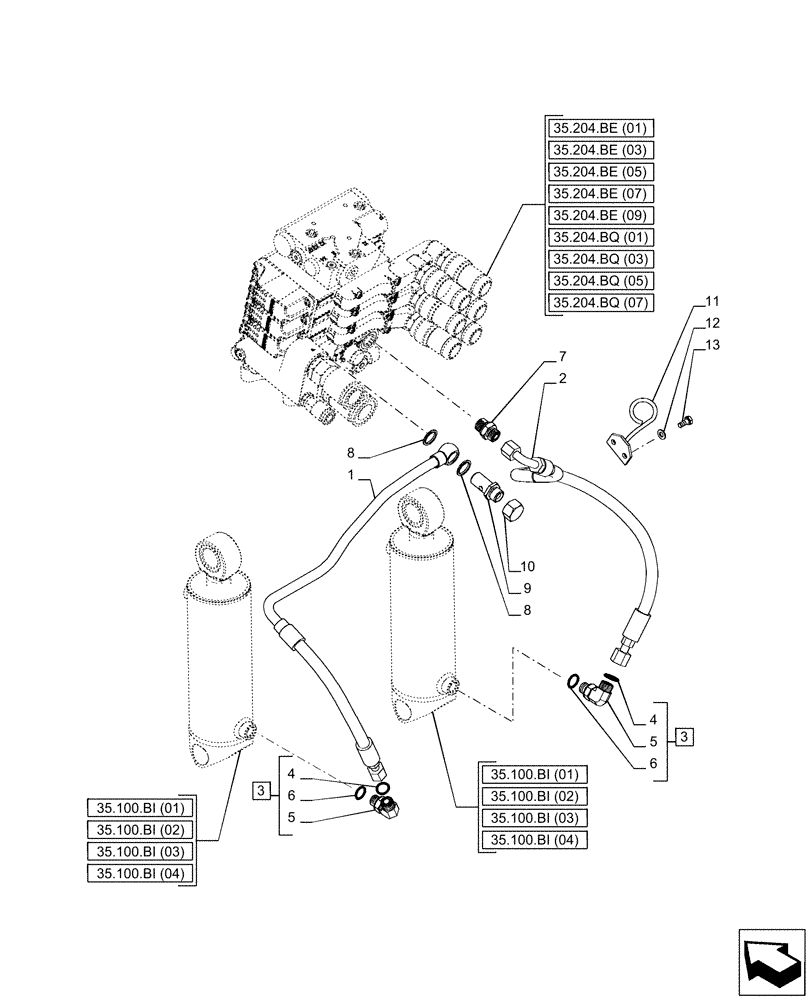

Запчасти Case IH PUMA 150 (35.100.AR[01]) - VAR - 391136, 391351, 758011, 758012, 758013, 758014, 758015, 758016, 758017, 758018, 758019, 758020, 758021, 758866, 758867, 758868, 758869 - LIFT CYLINDER, LINE (35) - HYDRAULIC SYSTEMS

1

84242914

TUBE,16 mm OD

LH Cylinder

1шт.

2

87519167

HOSE,9.5mm ID x 880mm L, SAE 100R16

RH Cylinder

1шт.

3

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

ASSY, Incl 4 - 6

2шт.

4

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

5

NSS

NOT SOLD SEPARAT

Elbow, Incl in 3

1шт.

6

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

7

5196305

UNION

1шт.

8

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

2шт.

9

47133105

BANJO BOLT,M22 x 1.50 x 58mm, R50

1шт.

10

47133106

PLUG,Hex, M22 x 1.5 x 13mm L

1шт.

11

87531649

BRACKET

1шт.

12

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

13

86625000

BOLT,Hex, M8 x 18mm, Cl 8.8, Full Thd

1шт.
