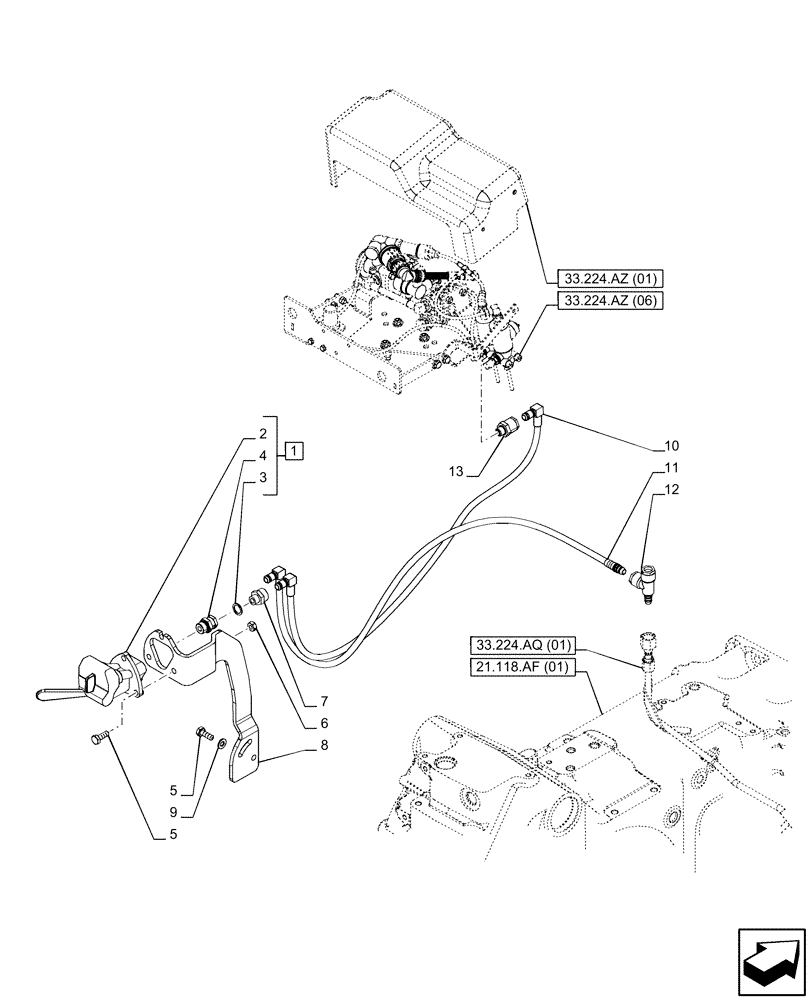

Запчасти Case IH PUMA 150 (33.224.AQ[03]) - VAR - 758041, 758042 - TRAILER BRAKE VALVE, INLINE, ITALY (33) - BRAKES & CONTROLS

1

87692946

PUSH-PULL COUPLING

ASSY, Incl 2 - 4

1шт.

2

87693018

COUPLING

Coupling, Incl in 1

1шт.

3

87692948

WASHER,18.0mm ID x 25mm OD x 1.5mm Thk, Aluminum

2шт.

4

87692949

FITTING,M22 x 1.5 x M18 x 1.5

2шт.

5

11106421

SCREW,Hex, M10 x 1.5 x 30mm, Cl 8.8

5шт.

6

11701711

NUT,Hex, M10, Cl 8, ZND

3шт.

7

87741618

COUPLING

2шт.

8

47620067

BRACKET

1шт.

9

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

10

84181246

FLEXIBLE HOSE

1шт.

11

87628564

HOSE,12.00mm OD x 1200.00mm

1шт.

12

84185248

HYD CONNECTOR

1шт.

13

84157696

HYD CONNECTOR,MG12 / M16 x 1.5mm

1шт.
