Запчасти Case IH PUMA 150 (33.220.AC[09]) - VAR - 758037, 758039, 758044 - TRAILER BRAKE VALVE, LINE, UNIVERSAL (33) - BRAKES & CONTROLS

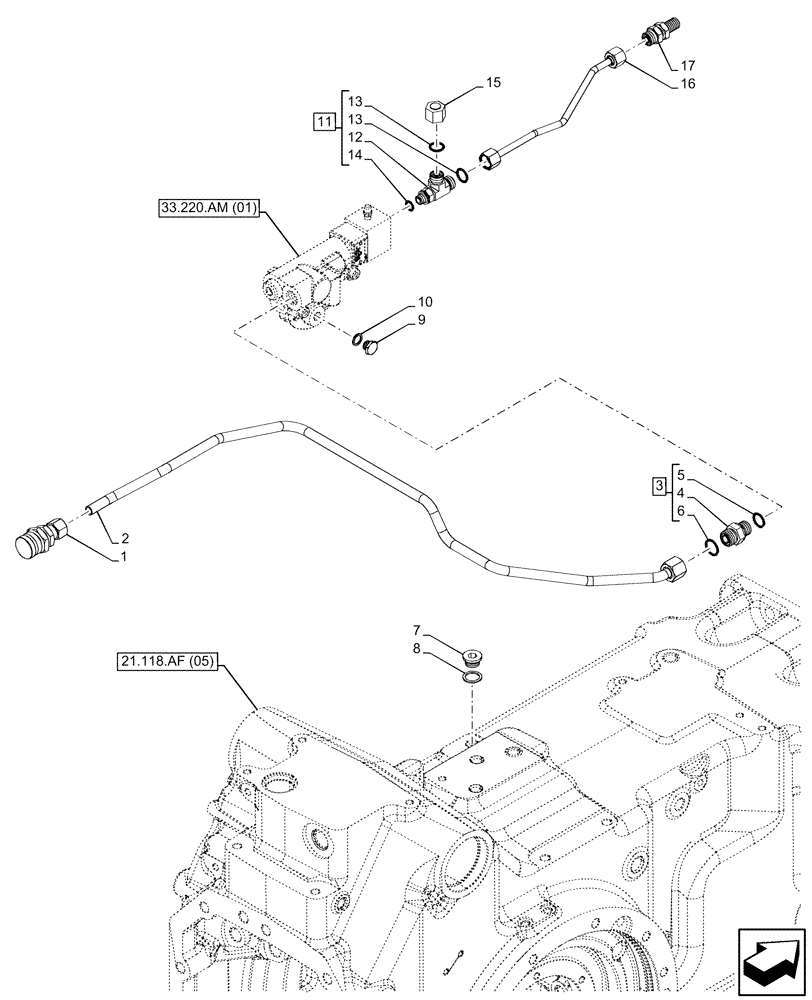

Схема запчастей Case IH PUMA 150 - (33.220.AC[09]) - VAR - 758037, 758039, 758044 - TRAILER BRAKE VALVE, LINE, UNIVERSAL (33) - BRAKES & CONTROLS
33.220.am (01)
16
2
12
15
13
17
4
9
13
14
8
7
3
1
6
10
5
11
21.118.af (05)

Артикул

Название

Примечание

Количество

1

5144514

HYDRAULIC VALVE

1шт.

2

47444292

PIPE

1шт.

3

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

ASSY, Incl 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

1шт.

5

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

6

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

7

10273111

PLUG,M18 x 1.5 x 13

1шт.

8

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

1шт.

9

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

10

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

1шт.

11

87521154

HYD CONNECTOR,M12 x 1, ORB 11/16"-16 ORFS

ASSY, Incl 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

Tee, Incl in 11

1шт.

13

82019391

SEAL,9.8mm ID x 14.4mm OD x 1mm Thk

2шт.

14

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

15

9625546

CAP,11/16" - 16 ORFS

1шт.

16

47438510

BRAKE LINE

1шт.

17

87711901

HYD CONNECTOR

1шт.

Выбрано товаров: 17
