Запчасти Case IH PUMA 150 (33.220.AC[08]) - VAR - 758040, 758042 - TRAILER BRAKE VALVE, LINE, ITALY (33) - BRAKES & CONTROLS

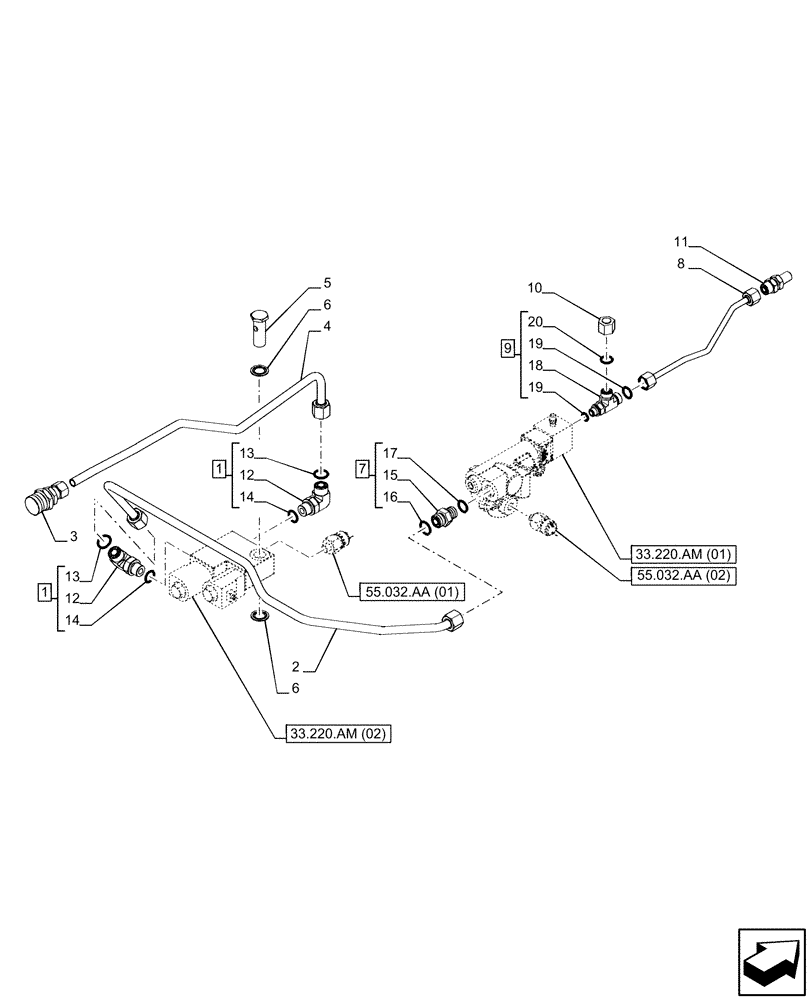

Схема запчастей Case IH PUMA 150 - (33.220.AC[08]) - VAR - 758040, 758042 - TRAILER BRAKE VALVE, LINE, ITALY (33) - BRAKES & CONTROLS
33.220.am (02)
9
1
3
11
14
6
16
2
8
4
12
7
19
5
17
1
18
13
12
20
13
6
14
15
10
19
55.032.aa (02)
55.032.aa (01)
33.220.am (01)

Артикул

Название

Примечание

Количество

1

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

ASSY, Incl 12 - 14

2шт.

2

47438565

PIPE

Trailer Brake Valve

1шт.

3

5144514

HYDRAULIC VALVE

1шт.

4

84416453

BRAKE LINE

Brake Line

1шт.

5

5197769

BANJO BOLT,M18 x 1.5 x 49mm

1шт.

6

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

2шт.

7

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

ASSY, Incl 15 - 17

1шт.

8

47438510

BRAKE LINE

Brake Pilot

1шт.

9

87521154

HYD CONNECTOR,M12 x 1, ORB 11/16"-16 ORFS

ASSY, Incl 18 - 20

1шт.

10

9625546

CAP,11/16" - 16 ORFS

1шт.

11

87711901

HYD CONNECTOR

1шт.

12

NSS

NOT SOLD SEPARAT

Elbow, Incl in 1

1шт.

13

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

14

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

15

NSS

NOT SOLD SEPARAT

Connector, Incl in 7

1шт.

16

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

17

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

18

NSS

NOT SOLD SEPARAT

Tee, Incl in 9

1шт.

19

82019391

SEAL,9.8mm ID x 14.4mm OD x 1mm Thk

2шт.

20

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

Выбрано товаров: 20
