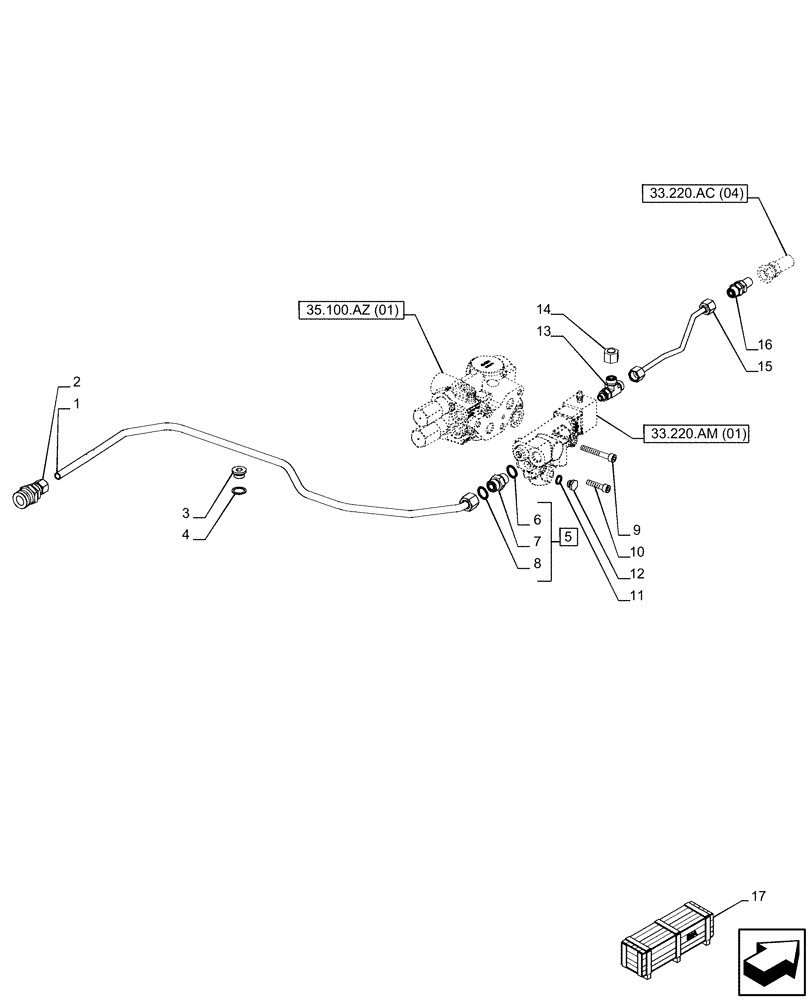

Запчасти Case IH PUMA 150 (33.220.AC[02]) - VAR - 758037, 758039, 758044 - TRAILER BRAKE, LINE, POWERSHIFT (33) - BRAKES & CONTROLS

1

47444292

PIPE

TBV

1шт.

2

44015354

QUICK MALE COUPLING

1шт.

3

10273140

PLUG,Hex Skt, M18 x 1.5

1шт.

4

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

1шт.

5

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

ASSY, Incl 6 - 8

1шт.

6

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

1шт.

8

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

9

14308920

HEX SOC SCREW,M8 x 60mm, Cl 8.8

2шт.

10

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

11

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

1шт.

12

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

13

87521154

HYD CONNECTOR,M12 x 1, ORB 11/16"-16 ORFS

M12 x 1 ORB 11/16"-16 ORFS

1шт.

14

9625546

CAP,11/16" - 16 ORFS

1шт.

15

47438510

BRAKE LINE

Brake Pilot

1шт.

16

87711901

HYD CONNECTOR

1шт.

17

710414124

DIA KIT, TRACTOR

Trailer Brake Valve, Incl 1, 2, 4 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
