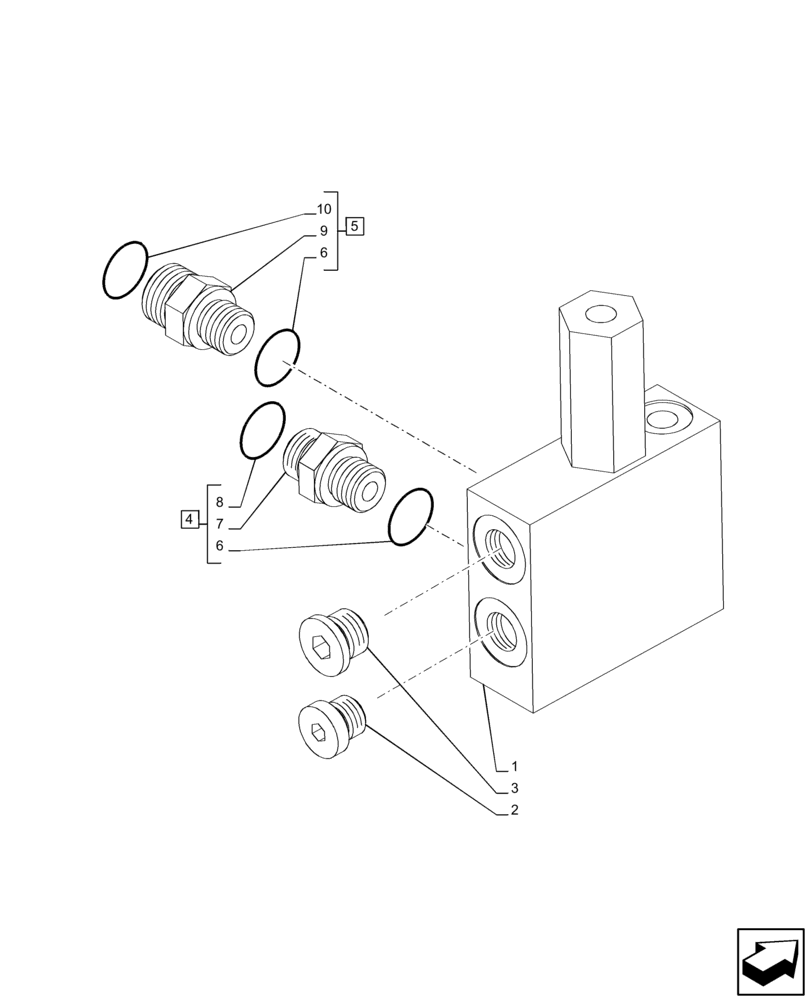

Запчасти Case IH PUMA 150 (33.204.AX) - VAR - 758046 - SUSPENDED FRONT AXLE, W/ BRAKE, BRAKE VALVE (33) - BRAKES & CONTROLS

1

47131070

BRAKE VALVE

1шт.

2

10118711

PLUG,M14 x 1.5 x 12, Cl5.8

1шт.

3

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

1шт.

4

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

ASSY, Incl 6 (Q.ty 1), 7, 8

1шт.

5

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

ASSY, Incl 6 (Q.ty 1), 9, 10

1шт.

6

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

2шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 4

1шт.

8

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

9

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

1шт.

10

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
