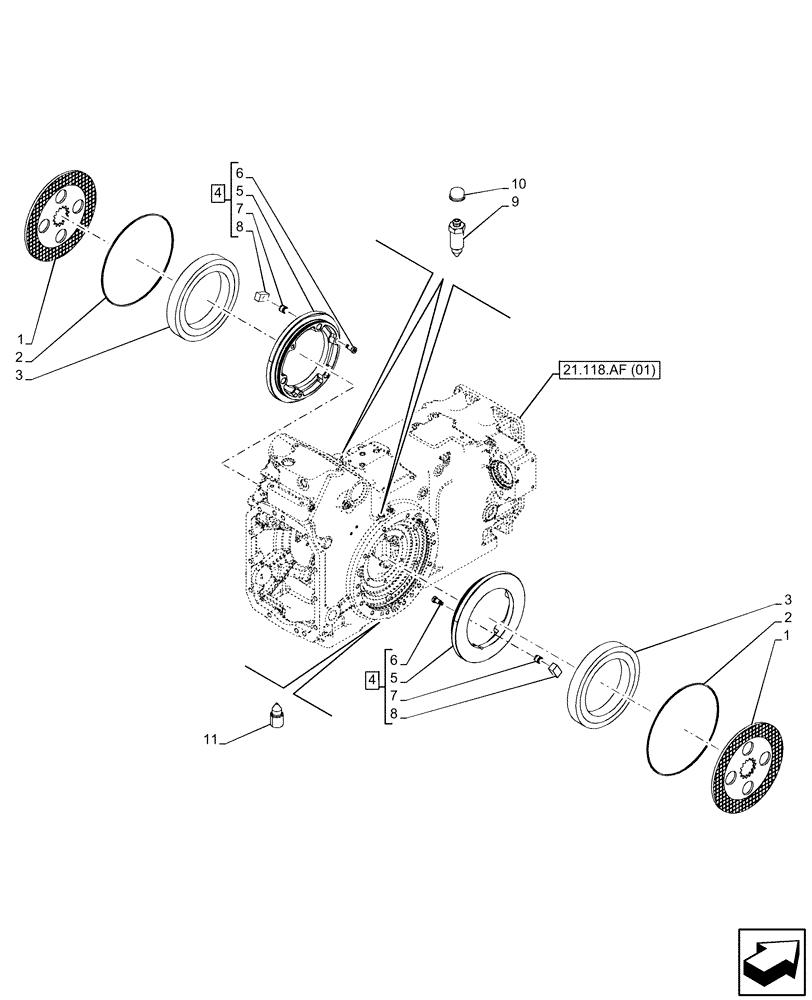

Запчасти Case IH PUMA 150 (33.202.AK[03]) - VAR - 758203 - TRANSMISSION, BRAKE DISC (33) - BRAKES & CONTROLS

1

84329059

BRAKE DISC,60mm ID x 327.00mm OD x 9.6mm Thk 14T

2шт.

2

5165512

SEAL,Square, 3.4mm Thk x 329.8mm ID, 80 Duro

2шт.

3

87699824

SEAL,Square, 3.4mm Thk x 253.1mm ID, 80 Duro

2шт.

4

87687292

PISTON & RINGS KIT

ASSY, Incl 4 - 8

2шт.

5

87316486

PISTON

1шт.

6

87699823

SCREW,M10 x 1.25 x 31.50mm, Cl 10.9

1шт.

7

87700832

BUSHING,15.3mm ID x 21.9mm OD x 19.83mm L

1шт.

8

NSS

NOT SOLD SEPARAT

Capscrew, Incl in 4

2шт.

9

5155682

BLEED SCREW,Bleeder, M12 x 1.25 x 33mm

2шт.

10

5171793

BOOT

2шт.

11

5152383

DRAIN PLUG,M12 x 1.25 x 24mm

2шт.
