(27.120.AR[03]) - VAR - 758052, 758053 - REAR AXLE, WHEEL HUB

Запчасти Case IH PUMA 150 (27.120.AR[03]) - VAR - 758052, 758053 - REAR AXLE, WHEEL HUB (27) - REAR AXLE SYSTEM

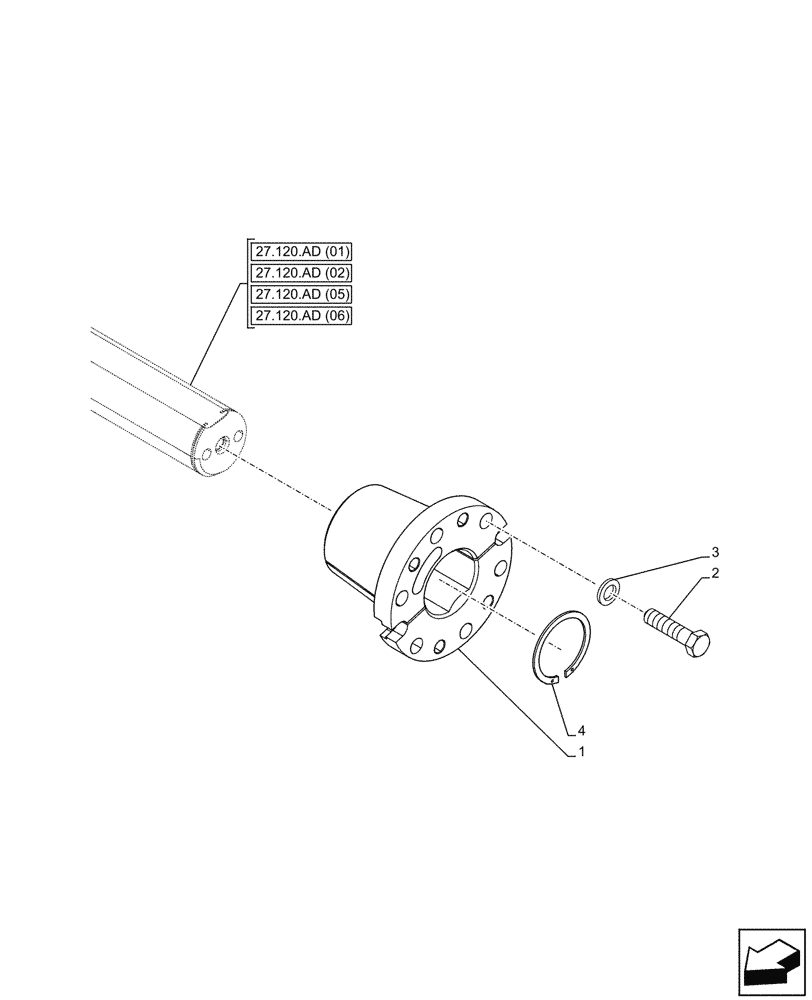

Схема запчастей Case IH PUMA 150 - (27.120.AR[03]) - VAR - 758052, 758053 - REAR AXLE, WHEEL HUB (27) - REAR AXLE SYSTEM
27.120.ad (05)
2
4
3
1
27.120.ad (06)
27.120.ad (01)
27.120.ad (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47699301

HUB

1шт.

2

11125424

SCREW,Hex, M20 x 85mm, Cl 8.8

6шт.

3

87306816

CONE WASHER,20.00mm ID x 36.00mm OD x 4.50mm

6шт.

4

11071374

CIRCLIP,3mm Thk

2шт.

Выбрано товаров: 4
