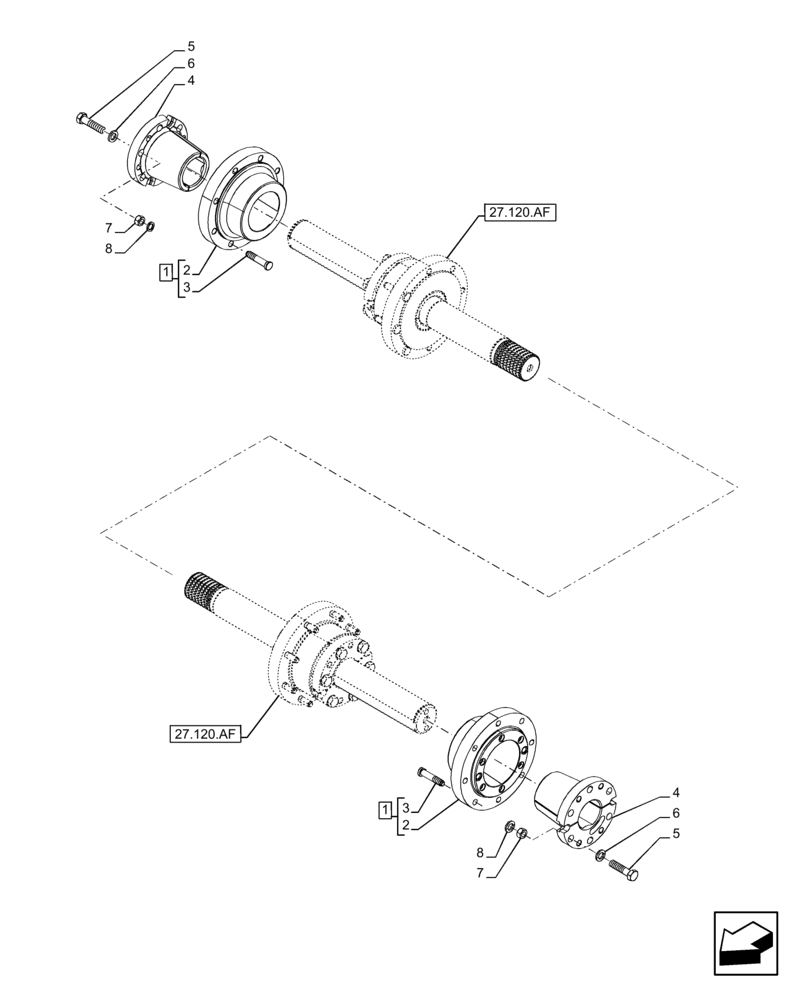

Запчасти Case IH PUMA 150 (27.120.AR[01]) - VAR - 332639 - REAR AXLE, WHEEL HUB (27) - REAR AXLE SYSTEM

1

47728569

HUB

ASSY, Incl 2, 3

2шт.

2

NSS

NOT SOLD SEPARAT

Hub, Incl in 1

2шт.

3

87651027

STUD,M18 x 1.5 x 85mm, Cl 10.9

8шт.

4

47699301

HUB

2шт.

5

11125424

SCREW,Hex, M20 x 85mm, Cl 8.8

12шт.

6

87306816

CONE WASHER,20.00mm ID x 36.00mm OD x 4.50mm

6шт.

7

12164224

NUT,M18 x 1.5, Cl 10

16шт.

8

82014658

LOCK WASHER,19.5mm ID x 29mm OD x 3.4mm Thk

16шт.
