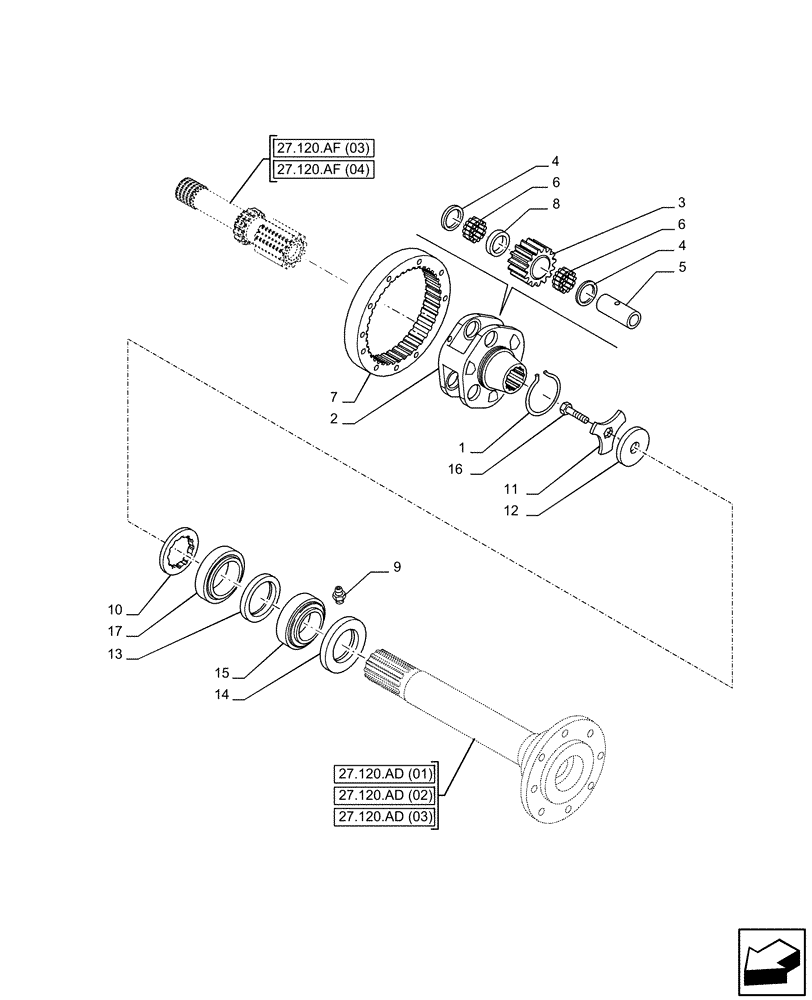

Запчасти Case IH PUMA 150 (27.120.AF[01]) - VAR - 391158, 758052, 758053 - REAR AXLE, FINAL DRIVE, PLANETARY GEAR (27) - REAR AXLE SYSTEM

1

5136132

CIRCLIP,4mm Thk

2шт.

2

87573468

PINION CARRIER

2шт.

3

87573467

PLANETARY GEAR,36T

6шт.

4

5136128

THRUST WASHER,62.5mm ID x 108mm OD x 1mm Thk

12шт.

5

5136130

PIN,62.4mm OD x 134mm L

6шт.

6

5136131

ROLLER BEARING,62.4mm ID x 76.4mm OD x 32mm W

6шт.

7

5165495

RING GEAR,88T, 60mm L

2шт.

8

87573466

SPACER,64.5mm ID x 76.3mm OD x 9mm L

6шт.

9

13407211

LUBE NIPPLE,M10 x 1

2шт.

10

5121644

THRUST WASHER,78mm ID x 112mm OD x 5mm Thk

2шт.

11

47621155

PLATE

2шт.

12

5165501

DISC,18.5mm ID x 95mm OD x 8.5mm Thk

2шт.

13

5165505

SEAL,88mm ID x 110mm OD x 12mm Thk

88mm ID x 110mm OD x 12mm

2шт.

14

5165506

SEAL,112mm ID x 140mm OD x 16mm Thk

112mm ID x 140mm OD x 16mm

2шт.

15

24903700

ROLLER BEARING,90mm ID x 140mm OD x 32mm W

2шт.

16

47638419

BOLT,Hex, M18 x 1.50 x 50mm, Cl 10.9

M18 x 1.50 x 50mm

2шт.

17

24903500

TAPERED BEARING,85mm ID x 130mm OD x 29mm W

2шт.
