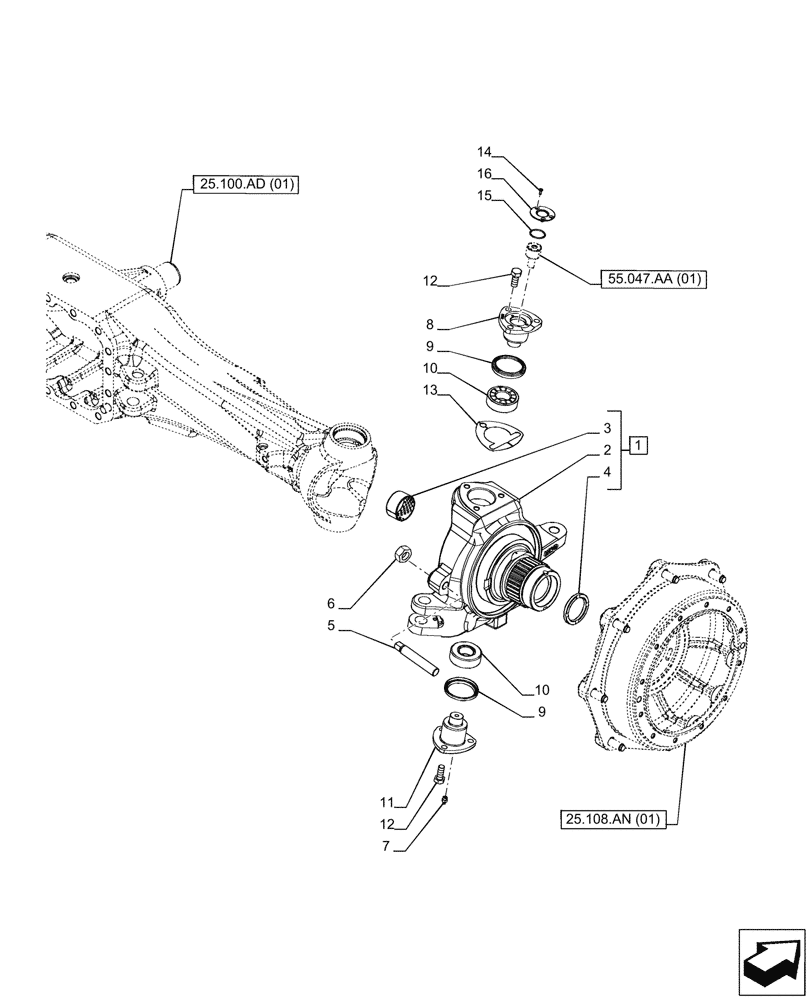

Запчасти Case IH PUMA 150 (25.108.AG[01]) - VAR - 391156 - 4WD FRONT AXLE, STEERING KNUCKLE, RH (25) - FRONT AXLE SYSTEM

1

87330073

STEERING KNUCKLE

RH, ASSY, Incl 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Knuckle, Incl in 1

1шт.

3

84409817

BUSHING,52mm ID x 56mm OD x 28mm L

52mm x 56mm x 28mm

1шт.

4

87592390

BUSHING,53mm ID x 68mm OD x 7.7mm L

1шт.

5

87471124

STUD,M18

M18

1шт.

6

10717611

NUT,Thin, M18 x 2.5, Cl 04

1шт.

7

13407211

LUBE NIPPLE,M10 x 1

1шт.

8

87382577

BALL STUD

Upper

1шт.

9

5121471

SEAL,56mm ID x 70mm OD x 7.5mm Thk

2шт.

10

5119699

SPHERICAL BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

2шт.

11

87333763

BALL STUD

Lower

1шт.

12

16326234

BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9

6шт.

13

5137457

SHIM,56.5mm ID x 97mm OD x 0.15mm Thk

1шт.

13

5137459

SHIM,56.5mm ID x 97mm OD x 0.25mm Thk

1шт.

13

5137458

SHIM,56.5mm ID x 97mm OD x 0.2mm Thk

1шт.

13

5137456

SHIM,56.5mm ID x 97mm OD x 0.1mm Thk

1шт.

13

5137460

SHIM,56.5mm ID x 97mm OD x 0.3mm Thk

1шт.

14

13299218

SCREW,Pozidriv Flat Hd, Csk, M5 x 12mm, Cl 5.8

1шт.

15

14458281

O-RING,1.237" ID x 1.443" OD x 0.103"

1шт.

16

84384510

TOP

1шт.
