/ / / / / / / / (23.314.AH[01]) - VAR - 391138, 391351, 758011, 758012, 758013, 758014, 758015, 758016, 758017, 758018, 758020, 758021, 758022 - 4WD FRONT AXLE, DRIVE SHAFT
Запчасти Case IH PUMA 150 (23.314.AH[01]) - VAR - 391138, 391351, 758011, 758012, 758013, 758014, 758015, 758016, 758017, 758018, 758020, 758021, 758022 - 4WD FRONT AXLE, DRIVE SHAFT (23) - FOUR WHEEL DRIVE SYSTEM

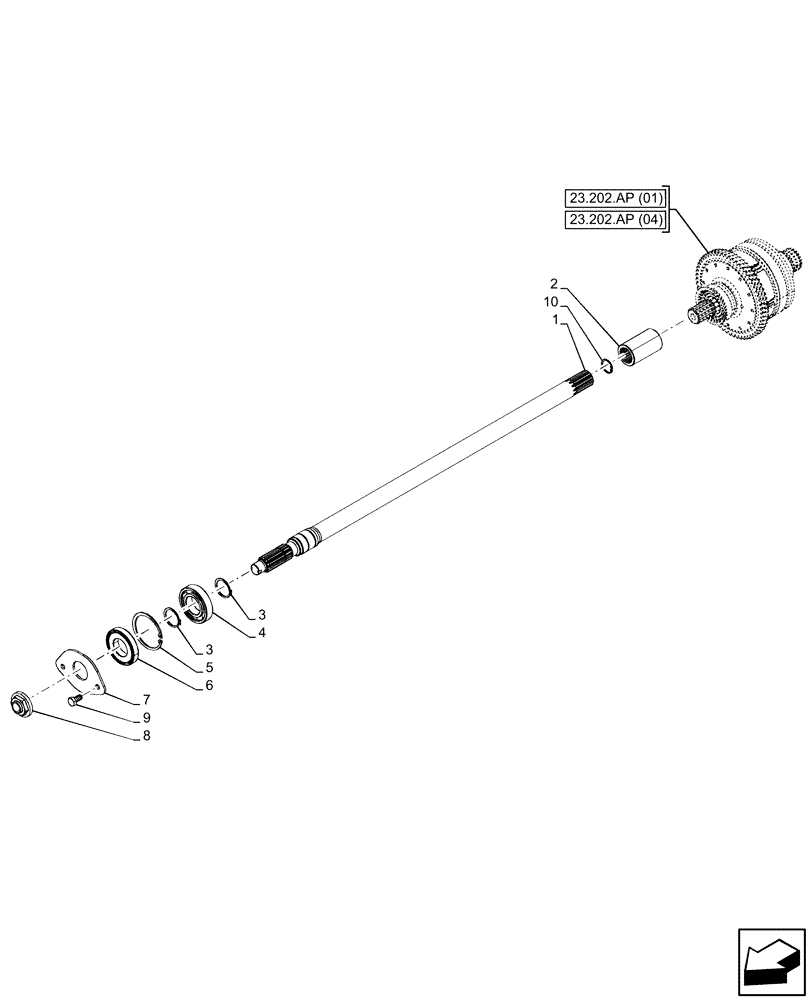

![Схема запчастей Case IH PUMA 150 - (23.314.AH[01]) - VAR - 391138, 391351, 758011, 758012, 758013, 758014, 758015, 758016, 758017, 758018, 758020, 758021, 758022 - 4WD FRONT AXLE, DRIVE SHAFT (23) - FOUR WHEEL DRIVE SYSTEM](https://partsell.ru/storage/images/caseih/5364038.png)
23.202.ap (04)
6
7
3
1
5
9
10
4
2
3
8
23.202.ap (01)
1
87599007
SHAFT,953mm L
953mm
1шт.
2
5172239
SPLINED COUPLING,12T
1шт.
3
11068876
SNAP RING,M40, Ext
2шт.
4
20915780
BALL BEARING,40mm ID x 80mm OD x 18mm W
1шт.
5
11061976
SNAP RING,M80, Int
1шт.
6
47134818
SEAL,40mm ID x 80mm OD x 15mm Thk
40 x 80 x 14/15mm
1шт.
7
47135527
FLANGE
1шт.
8
5111953
NUT,M24 x 1.5
M24 x 20mm
1шт.
9
15970624
BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd
2шт.
10
11058876
SNAP RING,M30, Int
1шт.
