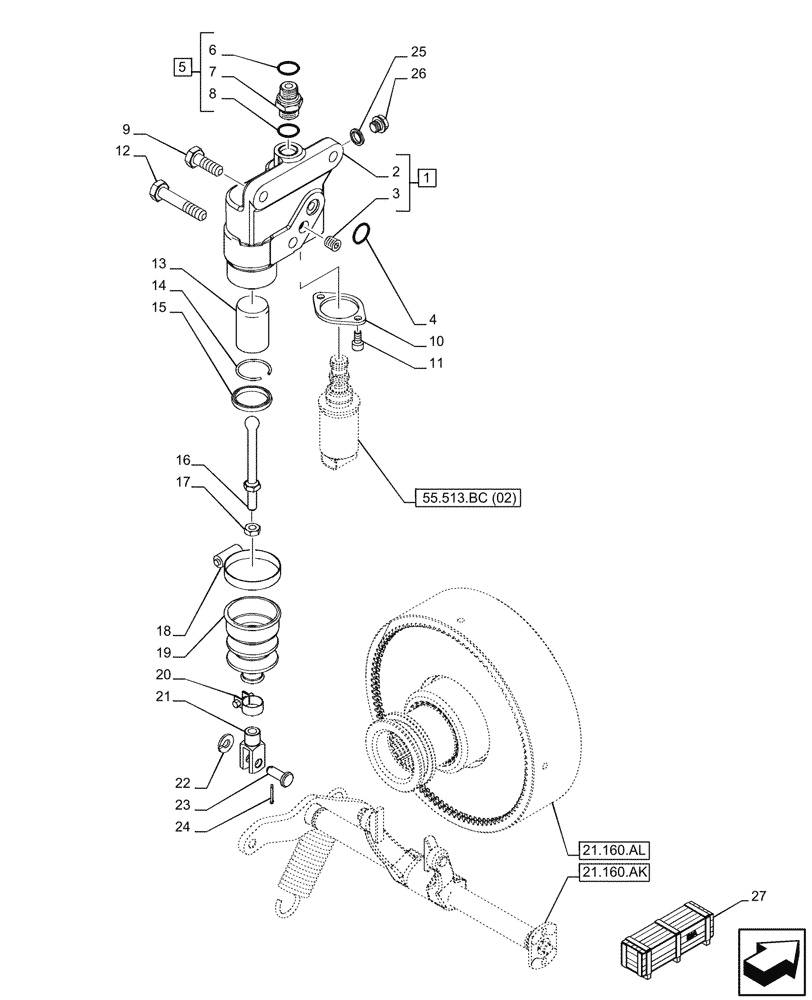

Запчасти Case IH PUMA 150 (21.160.AP) - VAR - 758011, 758013, 758015, 758017, 758019, 758021, 758867, 758869 - CREEPER, CONTROL LEVER (21) - TRANSMISSION

1

87561401

BODY

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

3

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

1шт.

4

14456980

O-RING,10.77mm ID x 2.62mm

1шт.

5

5192374

HYD CONNECTOR,11/16-16 ORFS x M16 x 1.5 ORB

ASSY, Incl 6 - 8

1шт.

6

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

1шт.

8

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

9

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

2шт.

10

5194826

BRACKET

1шт.

11

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

2шт.

12

11343724

BOLT,Hex, M10 x 1.25 x 65mm, Cl 8.8

1шт.

13

5188325

PISTON

1шт.

14

13421376

SNAP RING,M30, Int

1шт.

15

5188311

SEAL,29.96mm ID x 36.86mm OD x 4.8mm Thk

1шт.

16

5188324

ROD,M8

1шт.

17

16102324

THIN NUT,Thin, M8 x 1.25, Cl 05

1шт.

18

13000790

HOSE CLAMP,40mm - 60mm, Worm Gear

1шт.

19

4999009

BOOT

1шт.

20

10187090

HOSE CLAMP,16mm - 18mm

1шт.

21

10007871

YOKE,8mm ID Pin Hole, M8 x 42mm L

1шт.

22

13550301

WASHER

1шт.

23

10050811

PIN,8mm OD x 22mm L

1шт.

24

10734206

COTTER PIN,2mm OD x 12mm L

1шт.

25

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

1шт.

26

87535222

PLUG,Hex, M10 x 1 x 13mm

1шт.

27

710117064

DIA KIT, TRACTOR

Creeper Dia for Semi Powershift Transmission, Incl 1 - 26

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

27

710146084

DIA KIT, TRACTOR

Creeper Dia for Full Powershift Transmission, Incl 1 - 26

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
