Запчасти Case IH PUMA 150 (21.155.AK[01]) - VAR - 391136, 391351, 758011, 758012, 758013, 758014, 758015 - TRANSMISSION, INPUT SHAFT, SEMI POWERSHIFT (21) - TRANSMISSION

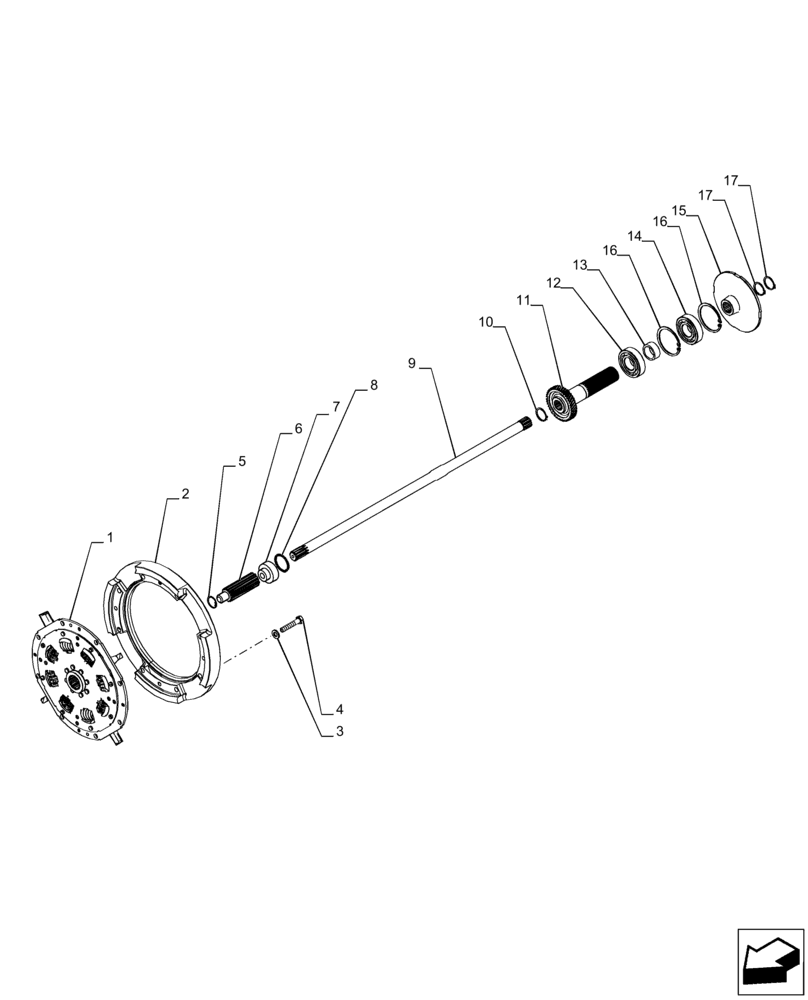

Схема запчастей Case IH PUMA 150 - (21.155.AK[01]) - VAR - 391136, 391351, 758011, 758012, 758013, 758014, 758015 - TRANSMISSION, INPUT SHAFT, SEMI POWERSHIFT (21) - TRANSMISSION
7
6
11
5
14
16
9
4
1
3
8
10
17
2
13
15
17
16
12

Артикул

Название

Примечание

Количество

1

87542609

DAMPER,348mm OD

1шт.

1

87542609R

REMAN-CLUTCH PLATE

1шт.

1

87542609C

CORE-CLUTCH PLATE

Return Number

1шт.

2

11198674

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 3.2mm Thk

8шт.

3

16208430

BOLT,Hex, M12 x 1.25 x 65mm, Cl 10.9

8шт.

4

47125891

ENGINE FLYWHEEL

1шт.

5

11059076

SNAP RING,M32, Int

1шт.

6

87319483

CONTROL SHAFT,14T

1шт.

7

87314222

PLUG,M8 x 1.25

1шт.

8

14463681

O-RING,31.34mm ID x 3.53" Width

1шт.

9

87372511

SHAFT,10T, 11T, 963mm L

1шт.

10

11058676

SNAP RING,M28, Int

1шт.

11

87588682

DRIVING GEAR,11T, 28T, 41T

1шт.

12

5150900

BEARING, ROLLER, CYL,45mm ID x 85mm OD x 19mm W

1шт.

13

87398247

SPACER,45.1mm ID x 55mm OD x 24mm L

1шт.

14

20972850

BALL BEARING,45 mm ID x 85 mm OD x 19 mm

1шт.

15

87586677

SPLINED RING,28T, 172.5mm OD x 42mm ID

1шт.

16

11062176

CIRCLIP,M85, Int

2шт.

17

11069076

SNAP RING,M45, Ext

2шт.

Выбрано товаров: 19
