Запчасти Case IH PUMA 150 (21.155.AH[03]) - VAR - 708016, 708017, 708018, 708019, 708020, 708021 - TRANSMISSION, SPLITTER, FULL-POWERSHIFT (21) - TRANSMISSION

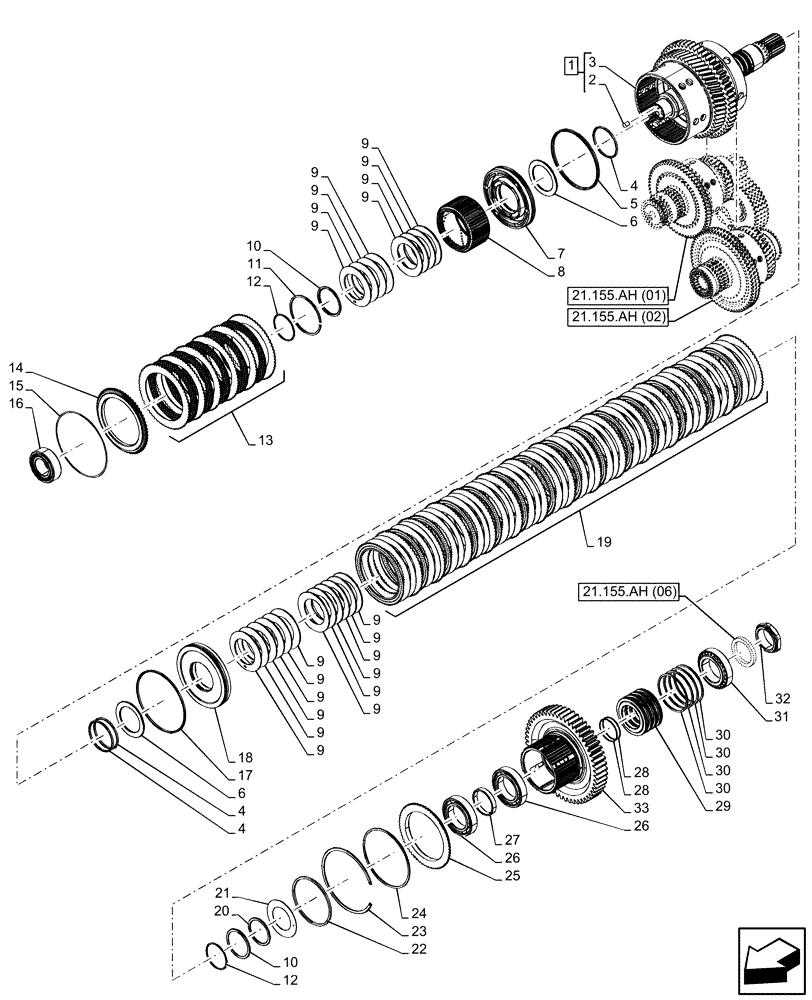

Схема запчастей Case IH PUMA 150 - (21.155.AH[03]) - VAR - 708016, 708017, 708018, 708019, 708020, 708021 - TRANSMISSION, SPLITTER, FULL-POWERSHIFT (21) - TRANSMISSION
21.155.ah (06)
9
28
9
9
33
24
9
30
31
4
16
4
9
5
12
28
23
10
17
26
9
9
4
9
19
12
9
20
18
30
9
26
14
8
22
9
9
9
9
25
7
29
10
9
9
1
30
2
3
13
6
6
11
9
21
9
30
32
9
27
15
9
21.155.ah (02)
21.155.ah (01)

Артикул

Название

Примечание

Количество

1

87319501

SHAFT,20T, 367mm L

ASSY, Incl 2, 3

1шт.

2

14536590

PLUG,10.00mm Dia x 19.80mm L

3шт.

3

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

1шт.

4

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

3шт.

5

5138955

GASKET,134.55mm ID x 142.06mm OD x 3.2mm Thk

1шт.

6

87547826

RING,61mm ID x 84.95mm OD x 3mm Thk

2шт.

7

5187425

PISTON

1шт.

8

5172234

HUB

1шт.

9

87547948

BELLEVILLE SPRING,60.8mm ID x 95mm OD x 2.3mm Thk

8шт.

10

5164928

RETAINER CUP,60mm ID x 70mm OD x 3mm Thk

2шт.

11

5171953

CIRCLIP,2.5mm Thk

1шт.

12

5175981

CIRCLIP,1.5mm Thk

2шт.

13

87530793

CLUTCH PACK

1шт.

14

47132780

THRUST PLATE,60T, 154.75mm OD

1шт.

15

47132782

SNAP RING,3mm Thk, Int

1шт.

16

5172328

TAPERED BEARING,40mm ID x 75mm OD x 26mm W

1шт.

17

5172302

GASKET,140.55mm ID x 148mm OD x 3.2mm Thk

1шт.

18

5187424

PISTON

1шт.

19

5199903

KIT

1шт.

20

5183118

SPACER,55.1mm ID x 66mm OD x 2.5mm L

1шт.

21

5183706

THRUST WASHER,55.1mm ID x 89mm OD x 1mm Thk

1шт.

22

81865152

SEAL,107.72mm ID x 116.32mm OD x 3.8mm Thk

1шт.

23

47132979

CIRCLIP,2mm Thk

1шт.

24

47435954

LOCKING RING,5.25" ID x .094" Thk

1шт.

25

5179115

DISC,117.02mm ID x 154.35mm OD x 12.5mm Thk

1шт.

26

28042510

BALL BEARING,55mm x 90mm x 18mm

2шт.

27

5179113

GEAR,52T, 53T

Low Speed Splitter

1шт.

27

5179172

SHIM,M55.2 x 62 x 10.500

1шт.

28

14455080

O-RING,50.52mm ID x 1.78mm

2шт.

29

5185208

PISTON,89.35mm Bore, 55mm Rod, 53.5mm W

1шт.

30

5131232

OIL SCRAPER RING,Split, 83.02mm ID x 90mm OD x 2.22mm Thk

4шт.

31

5187264

TAPERED BEARING,55 mm ID x 90 mm OD x 23 mm

1шт.

32

5172206

NUT,Hex, M50, 1.5mm Pitch, 20mm Thk, Hdn

1шт.

33

5179113

GEAR,52T, 53T

Low Speed Splitter

1шт.

Выбрано товаров: 34
