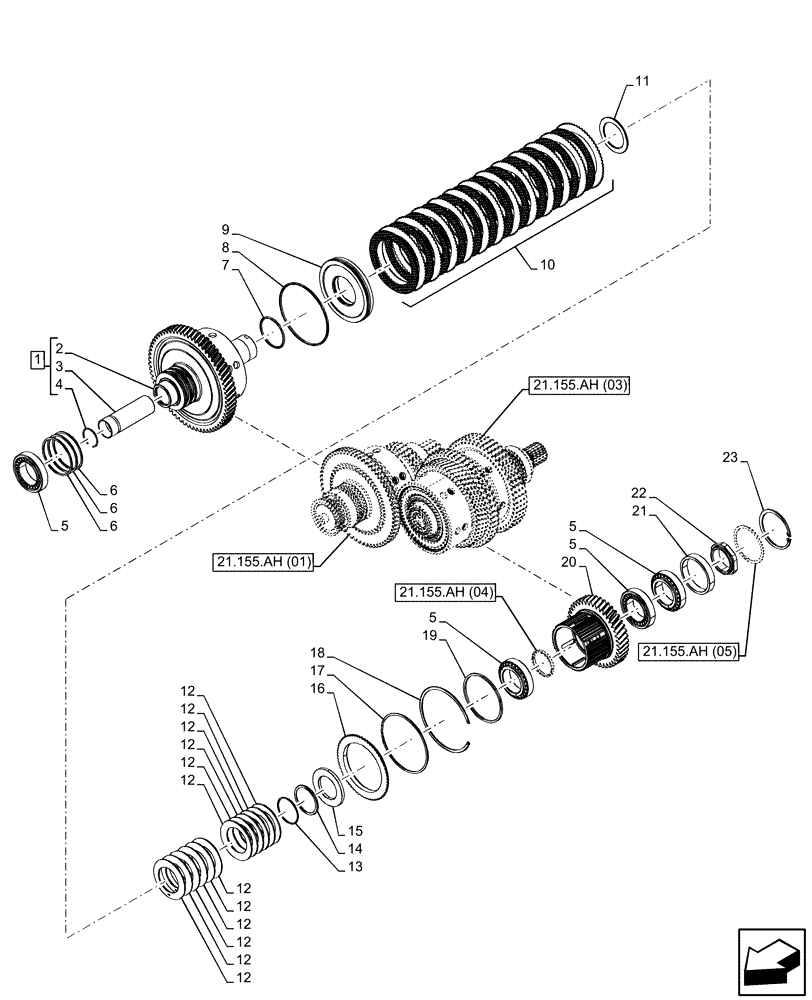

Запчасти Case IH PUMA 150 (21.155.AH[02]) - VAR - 758016, 758017, 758018, 758019, 758020, 758021 - TRANSMISSION, SPLITTER, FULL-POWERSHIFT (21) - TRANSMISSION

1

84309006

HUB

ASSY, Incl 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

3

5172261

SPACER,38mm ID x 42.5mm OD x 130mm L

1шт.

4

13421876

CIRCLIP,42mm ID x 45 OD

1шт.

5

5187264

TAPERED BEARING,55 mm ID x 90 mm OD x 23 mm

4шт.

6

5131232

OIL SCRAPER RING,Split, 83.02mm ID x 90mm OD x 2.22mm Thk

3шт.

7

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

1шт.

8

5172302

GASKET,140.55mm ID x 148mm OD x 3.2mm Thk

1шт.

9

5187424

PISTON

1шт.

10

87530794

CLUTCH PACK

1шт.

11

87547826

RING,61mm ID x 84.95mm OD x 3mm Thk

1шт.

12

87547948

BELLEVILLE SPRING,60.8mm ID x 95mm OD x 2.3mm Thk

12шт.

13

5175981

CIRCLIP,1.5mm Thk

1шт.

14

5164928

RETAINER CUP,60mm ID x 70mm OD x 3mm Thk

1шт.

15

87673443

SPACER,55.01mm ID x 89.73mm OD x 6.5mm L

1шт.

16

5179115

DISC,117.02mm ID x 154.35mm OD x 12.5mm Thk

1шт.

17

47435954

LOCKING RING,5.25" ID x .094" Thk

1шт.

18

47132979

CIRCLIP,2mm Thk

1шт.

19

81865152

SEAL,107.72mm ID x 116.32mm OD x 3.8mm Thk

1шт.

20

87629846

DRIVING GEAR,41T, 51T, 52T

1шт.

21

5179538

SPACER,78mm ID x 89.8mm OD x 15.75mm L

1шт.

22

5187828

NUT,Hex, M55 x 1.5, 20 Thd

1шт.

23

11062476

SNAP RING,M90, Int

1шт.
