Запчасти Case IH PUMA 150 (21.155.AH[01]) - VAR - 758016, 758017, 758018, 758019, 758020, 758021 - TRANSMISSION, SPLITTER, FULL-POWERSHIFT (21) - TRANSMISSION

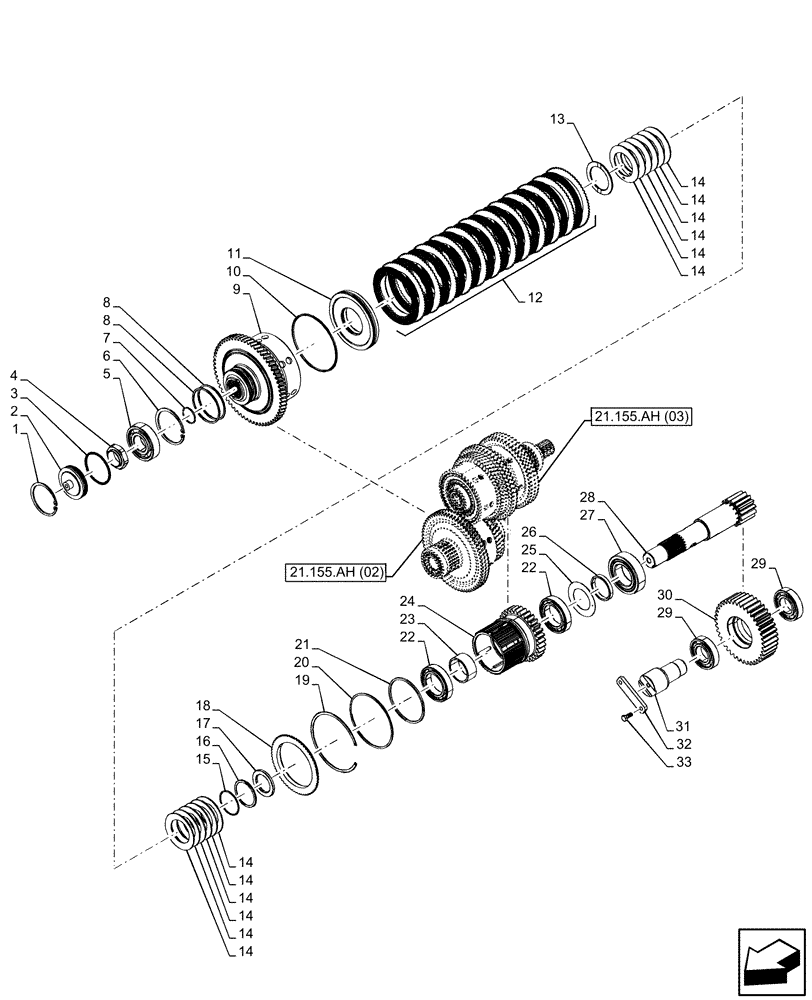

Схема запчастей Case IH PUMA 150 - (21.155.AH[01]) - VAR - 758016, 758017, 758018, 758019, 758020, 758021 - TRANSMISSION, SPLITTER, FULL-POWERSHIFT (21) - TRANSMISSION
21.155.ah (02)
3
1
23
9
14
14
33
18
13
26
24
10
5
14
6
16
29
17
8
11
29
19
4
14
14
14
14
2
14
12
28
14
7
22
20
21
14
15
31
27
14
14
25
8
32
30
22
21.155.ah (03)

Артикул

Название

Примечание

Количество

1

11062076

SNAP RING,M82, Int

1шт.

2

5172255

COVER

1шт.

3

14460980

O-RING,75.87mm ID x 2.62" Width

1шт.

4

5119147

RING NUT,M40 x 1.5

1шт.

5

20943310

BALL BEARING,40mm ID x 90mm OD x 23mm W

1шт.

6

11062476

SNAP RING,M90, Int

1шт.

7

13398976

SNAP RING,M40, Int

1шт.

8

5131232

OIL SCRAPER RING,Split, 83.02mm ID x 90mm OD x 2.22mm Thk

2шт.

9

87319507

HUB

1шт.

10

5172302

GASKET,140.55mm ID x 148mm OD x 3.2mm Thk

1шт.

11

5187424

PISTON

1шт.

12

87530794

CLUTCH PACK

1шт.

13

87547832

RING,61mm ID x 84.95mm OD x 3mm Thk

1шт.

14

87547948

BELLEVILLE SPRING,60.8mm ID x 95mm OD x 2.3mm Thk

12шт.

15

5175981

CIRCLIP,1.5mm Thk

1шт.

16

5164928

RETAINER CUP,60mm ID x 70mm OD x 3mm Thk

1шт.

17

5187838

SPACER,46.1mm ID x 68mm OD x 5.5mm L

1шт.

18

5179115

DISC,117.02mm ID x 154.35mm OD x 12.5mm Thk

1шт.

19

47132979

CIRCLIP,2mm Thk

1шт.

20

47435954

LOCKING RING,5.25" ID x .094" Thk

1шт.

21

81865152

SEAL,107.72mm ID x 116.32mm OD x 3.8mm Thk

1шт.

22

28042510

BALL BEARING,55mm x 90mm x 18mm

2шт.

23

5185165

SPACER,55.1mm ID x 64mm OD x 28mm L

1шт.

24

5185166

GEAR,31T, 52T

Reverse

1шт.

25

5183706

THRUST WASHER,55.1mm ID x 89mm OD x 1mm Thk

1шт.

26

5187839

SPACER,55.1mm ID x 64mm OD x 9.5mm L

1шт.

27

5185575

NEEDLE BEARING,55mm ID x 100mm OD x 25mm W

1шт.

28

5185169

SHAFT,322mm L

322mm

1шт.

29

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

2шт.

30

5179293

GEAR,Z39

Intermediate, Z 39

1шт.

31

5172246

PIN,39.98mm OD x 115mm L

1шт.

32

5179133

PLATE

1шт.

33

14238021

LOCK BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

Выбрано товаров: 33
