Запчасти Case IH PUMA 150 (21.155.AA[01]) - VAR - 758016, 758017, 758018, 758019, 758020, 758021, 758868, 758869 - TRANSMISSION, FRONT COVER, MANIFOLD (21) - TRANSMISSION

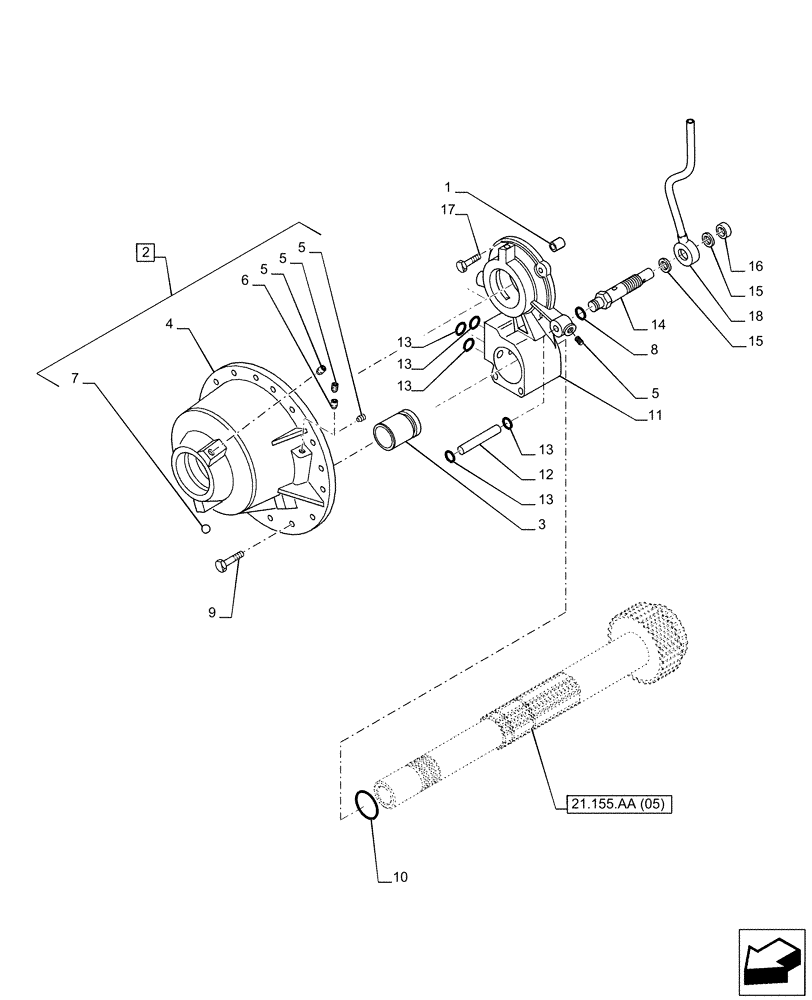

Схема запчастей Case IH PUMA 150 - (21.155.AA[01]) - VAR - 758016, 758017, 758018, 758019, 758020, 758021, 758868, 758869 - TRANSMISSION, FRONT COVER, MANIFOLD (21) - TRANSMISSION
21.155.aa (05)
11
9
18
12
15
10
1
3
6
2
5
7
8
14
13
16
5
5
5
13
13
4
17
13
13
15

Артикул

Название

Примечание

Количество

1

5178778

SPACER,11mm ID x 15mm OD x 15mm L

4шт.

2

5171866

COVER

ASSY, Incl 4, 5 (Q.ty 4) - 7

1шт.

3

5171880

TUBE

1шт.

4

5171865

COVER

1шт.

5

10275501

PLUG,Pipe, Hex Skt, M12 x 1.25 x 11mm, Cl 4.8

9шт.

6

5183149

ORIFICE,M12 x 1.25 x 8mm ID x 20mm L

1шт.

7

20063460

BALL,7.14mm OD, Gr 100

1шт.

8

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

9

16043921

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

10шт.

10

5185502

PISTON RING,28.5mm ID x 32mm OD x 2.1mm Thk

1шт.

11

5179106

MANIFOLD

1шт.

12

5178212

TUBE,97mm L

97mm

1шт.

13

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5шт.

14

5185573

VALVE PRESSURE RELIE

1шт.

15

10261860

COPPER WASHER,22.3mm ID x 30mm OD x 1.5mm Thk

2шт.

16

5164984

SPACER,22.3mm ID x 30mm OD x 7.5mm L

1шт.

17

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

18

5172521

TUBE

Lubrification

1шт.

Выбрано товаров: 18
