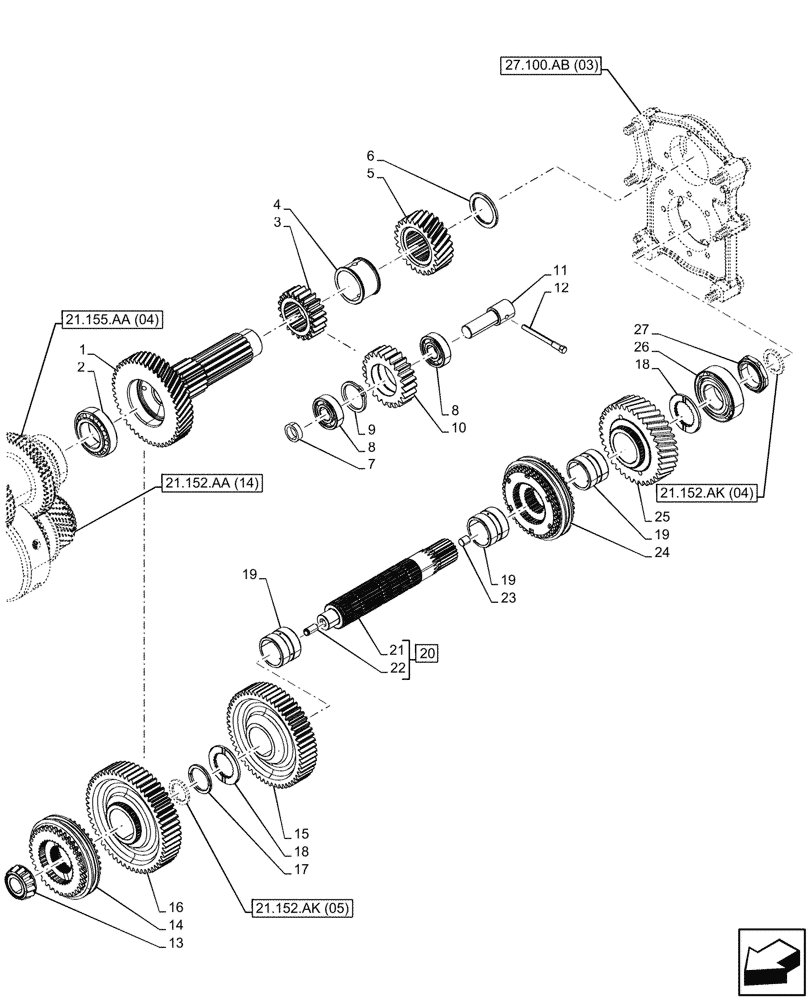

Запчасти Case IH PUMA 150 (21.152.AK[03]) - VAR - 391136, 391351, 708011, 708012, 708013, 708014, 708015 - TRANSMISSION, SPLITTER, SEMI-POWERSHIFT (21) - TRANSMISSION

1

5166028

DRIVEN SHAFT,16T, 46T

1шт.

2

26800160

TAPERED BEARING,50mm x 90mm x 24.50mm

1шт.

3

5160404

DRIVEN GEAR,16T, 21T

Reverse

1шт.

4

5160345

SPACER,58.3mm ID x 72mm OD x 44mm L

1шт.

5

5166035

GEAR,25T, 59T

1шт.

6

5166040

THRUST WASHER,50.1mm ID x 68mm OD x 4.5mm Thk

1шт.

7

5160347

SPACER,25mm ID x 34mm OD x 10mm L

1шт.

8

20996680

BALL BEARING,25mm ID x 62mm OD x 17mm W

2шт.

9

11061076

SNAP RING,M62, Int

1шт.

10

5160382

DRIVEN GEAR,24T

Intermediate

1шт.

11

5164846

SHAFT,25mm OD x 68mm L

1шт.

12

5178342

ROLL PIN,M10 x 1 x 96.5mm L

1шт.

13

5180813

ROLLER BEARING,30mm ID x 27mm W

1шт.

14

87567127

SYNCHRONIZER,24T, 50mm OD, 38T, 80mm OD

1шт.

15

5165372

DRIVEN GEAR,37T, 38T

Driven

1шт.

16

5164727

DRIVEN GEAR,38T, 55T

Low Speed

1шт.

17

5169085

RING,44mm ID x 56mm OD x 4mm Thk

1шт.

18

5149239

THRUST WASHER,46mm ID x 75mm OD x 5mm Thk

2шт.

19

5164695

BUSHING,49.4mm ID x 60mm OD x 46.6mm L

3шт.

20

5180851

AXLE

1шт.

21

5166038

PIPE

1шт.

22

5180850

MAIN SHAFT,20T, 24T

1шт.

23

5125566

DOWEL,M14 x 1.5 x 16mm

1шт.

24

87537028

SYNCHRONIZER,24T, 50mm OD, 38T, 80mm OD

1шт.

25

5164729

DRIVEN GEAR,37T, 38T

Normal Speed

1шт.

26

5169086

ROLLER BEARING,47.5 mm ID x 100 mm OD x 27.25 mm

1шт.

27

5169091

NUT,Hex Flg, M47.50 x 1.5mm Pitch, 17mm High, LH

1шт.
