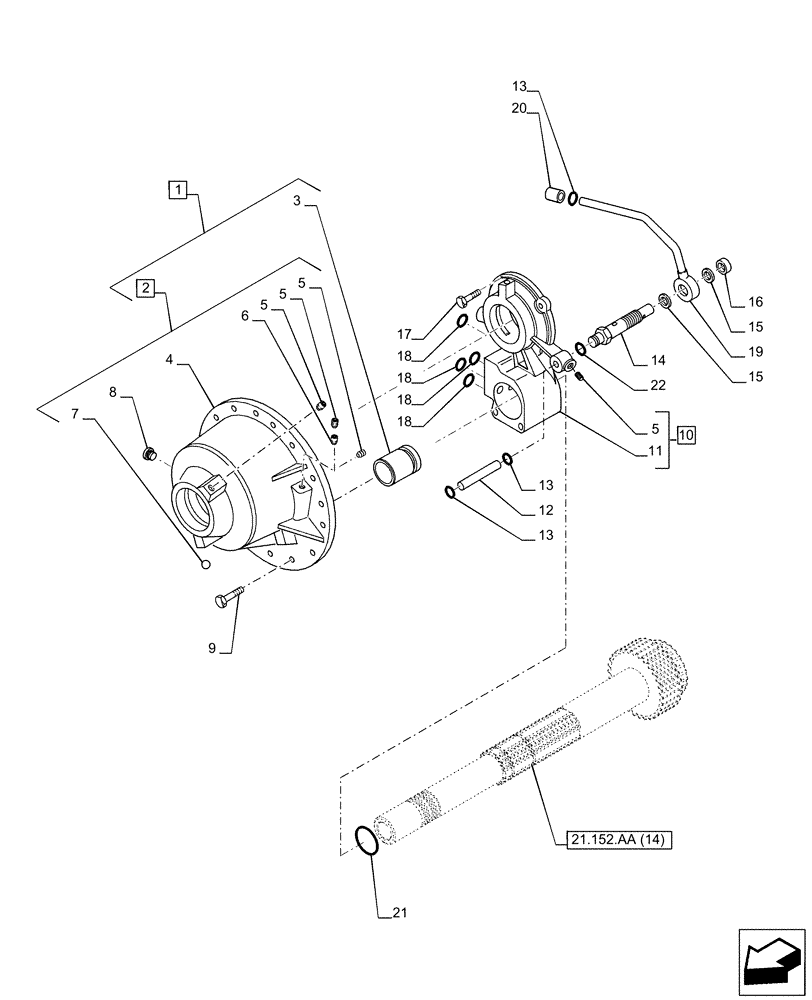

Запчасти Case IH PUMA 150 (21.152.AA[10]) - VAR - 391351, 758012, 758013, 758014, 758015 - TRANSMISSION, FRONT COVER, MANIFOLD (21) - TRANSMISSION

1

5186001

COVER

ASSY, Incl 2, 3

1шт.

2

5164862

COVER

ASSY, Incl 4, 5 (Q.ty 3), 6 - 8

1шт.

3

5186000

TUBE

Lubrification

1шт.

4

NSS

NOT SOLD SEPARAT

1шт.

5

10275501

PLUG,Pipe, Hex Skt, M12 x 1.25 x 11mm, Cl 4.8

4шт.

6

5167313

PLUG,Hex Skt, M12 x 12mm

1шт.

7

20063460

BALL,7.14mm OD, Gr 100

1шт.

8

14326001

PLUG,Hex Skt, M10 x 1.25 x 11mm, Cl 4.8

1шт.

9

16043921

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

10шт.

10

5187986

MANIFOLD

ASSY, Incl 5 (Q.ty 1), 11

1шт.

11

5187970

SUPPORT

1шт.

12

5178212

TUBE,97mm L

97mm

1шт.

13

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

3шт.

14

5185573

VALVE PRESSURE RELIE

1шт.

15

10261860

COPPER WASHER,22.3mm ID x 30mm OD x 1.5mm Thk

2шт.

16

5164984

SPACER,22.3mm ID x 30mm OD x 7.5mm L

1шт.

17

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

18

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

4шт.

19

5164980

TUBE

Lubrification

1шт.

20

5167066

BUSHING,16.2mm ID x 20mm OD x 11mm L

1шт.

21

5185502

PISTON RING,28.5mm ID x 32mm OD x 2.1mm Thk

1шт.

22

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.
